Applies to Models: All Hanwha SRN, HRX, QRN, XRN, PRN series NVRs
Summary:
All Hanwha NVRs and Cameras are compatible with ONVIF, which is enabled by default, allowing easy integration with any 3rd-party manufacturers, such as Hikvision brand cameras which have ONVIF disabled by default. This article covers enabling ONVIF in this competitor's product. You can also refer to this page on Hikvision's support portal.
NOTE: Hanwha does not communicate directly with our competitors, information in this article
is subject to change and may be out of date. Be sure to check the competitor's support
portal for updated instructions.
Step By Step Guide:
1. Open a Web browser (Chrome, or the browser recommended by the manufacturer.)
2. Access your camera by entering the IP address into your web browser.

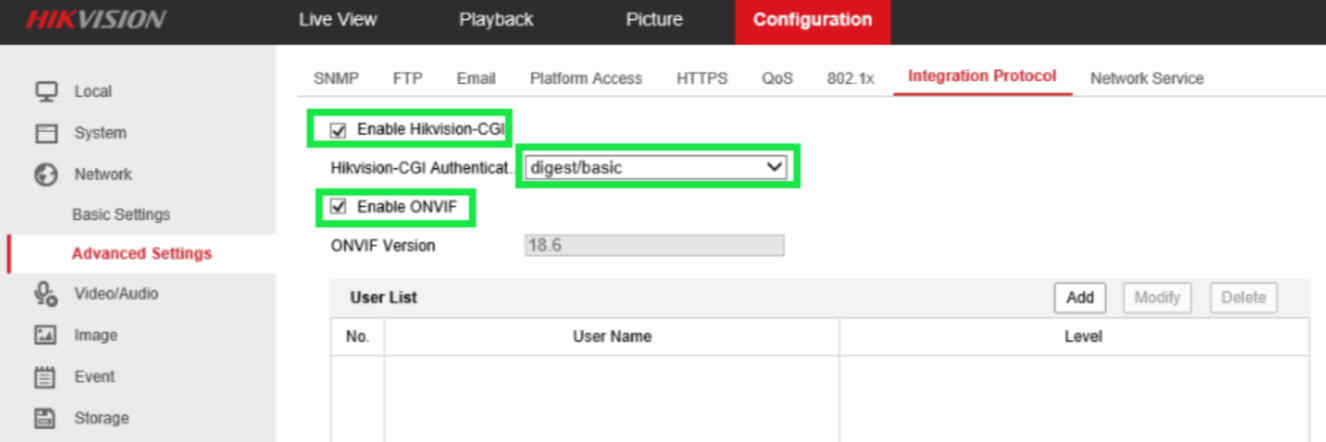

3. Navigate to CONFIGURATION > NETWORK > ADVANCED SETTINGS > INTEGRATION PROTOCOL (Figure 1)
4. Check the Enable ONVIF checkbox (Figure 1)
5. Check the Enable Hikvision CGI box (Figure 1)
6. Set Hikvision CGI Authentication to digest/basic (Figure 1)
7. Click the Add button to display the Add User window. (Figure 2)
NOTE: The maximum number of users is 32.
Figure 2
8. Input a username into the Username field.
9. Input a password into the Password field.
10. . Re-input the password in the Confirm field.
11. Check the appropriate user-level radio button in the Level section: Administrator – Unrestricted access to all settings. (Figure 2)
Figure 2
10. Click on Apply to save your settings
Note: Once this is complete, you can register the camera with a Hanwha NVR.
