Applies to:  All Hanwha Vision America NVRs

To maintain standards, Hanwha Vision uses the web UI for all knowledge base articles about product configuration. Open Chrome, enter the IP Address of your device into the URL bar, and press enter. If you are not using the web UI to configure your device, please refer to the user manual for your product.

Summary:

This article walks you through adding an RTSP stream from a Wisenet camera to an NVR.

NOTE: This only gives you access to the video stream, no other options in the
camera.

Step By Step Guide:

To add an RTSP stream:

1. Log in to the NVR through Chrome.

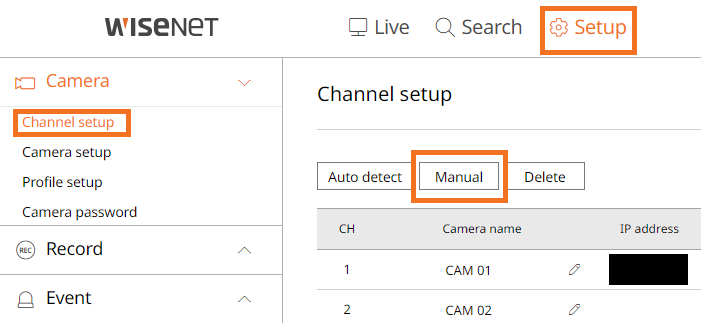

2. Go to Setup > Channel Setup > Manual.

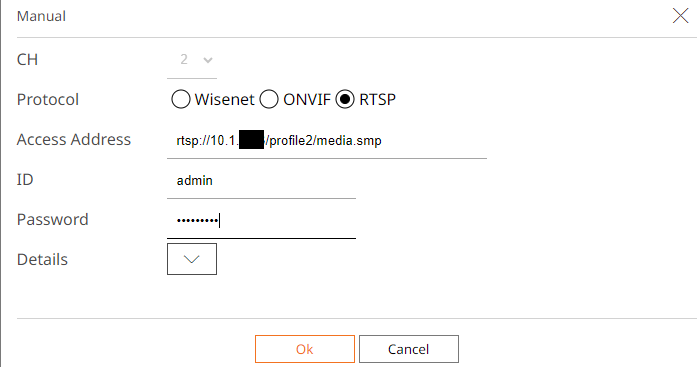

3. Next to Protocol, select RTSP.


4. Enter the RTSP URL provided by your manufacturer in the Access Address field.


   NOTE: For the purposes of demonstration we are using Hanwha RTSP URLs. If
   you use a third-party camera you must refer to that company for their RTSP
   URL format. Refer to the following article for the proper Hanwha URL format:
   What are the RSTP URLs of Hanwha devices?

5. Enter the credentials for the camera in question.


   NOTE: Even if your RTSP URL includes the credentials, enter them into the
   ID and Password fields.





6. Click OK.

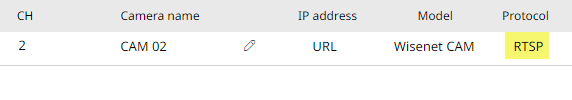

   You will see your camera has been added to the RTSP protocol.



   NOTE: In non-vms-based NVRs, you can only enter one stream URL, and the
   recording must be set to continuous. There is no Motion Based Recording on
   this series of NVR.
