Applies to Models: ARN, XRN, QRN, PRN, and HRX series recorders

To maintain standards, Hanwha Vision uses the web UI for all knowledge base articles about product configuration. Open Chrome, enter the IP Address of your device into the URL bar, and press enter. If you are not using the web UI to configure your device, please refer to the user manual for your product.

Summary:

All Hanwha recorders ship with a motion and continuous recording schedule assigned out of the box, if your site needs Event Recording, please follow the Step by Step below

Step By Step Guide:

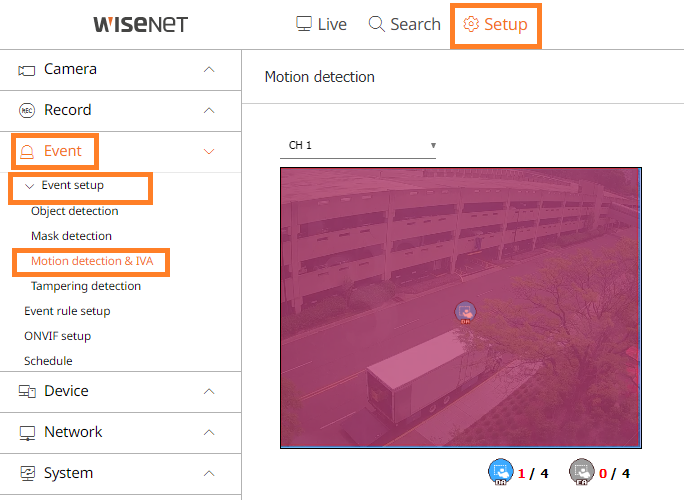

1. Go to Setup > Event> Event Setup> Motion Detection and IVA (Figure 1)

NOTE: When setting up the Motion Area for cameras in this interface, this
process is always one channel at a time for this setup option

Figure 1

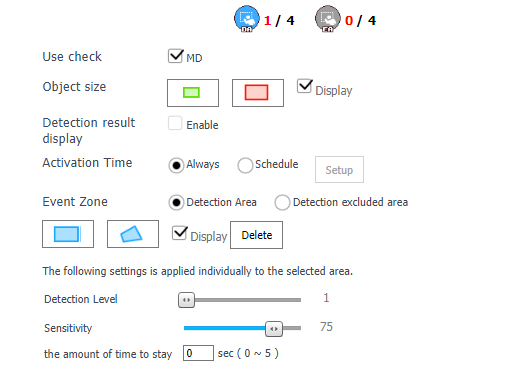

2. Make sure the Use Check has a Check Mark in it (Figure 2)

NOTE: You will not be modifying all of the settings in the Motion Detection
setup area, only change the selections listed below; all others leave
at their default settings

3. If you have mounted your camera at a higher than recommended height for camera mounting, you will need to adjust the Object Size settings, the green min box should be made smaller than a human in the field of view, and the red max setting should be the entire field of view (Figure 2)

4. Select Detection Area as Event Zone type (Figure 2)

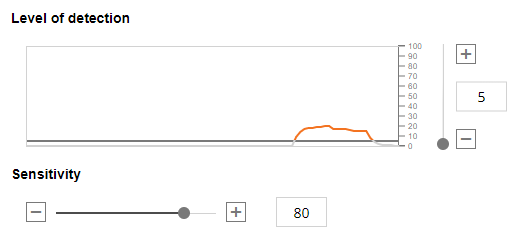

Note: Most camera models have settings for Sensitivity and Level of Detection
The higher the Sensitivity is the faster it reacts to pixel changes on the
Field of View
Level of Detection is normally used to ignore constant false positives,
when you raise the level of detection you are asking the camera to ignore
anything below the line in the picture below



Figure 2

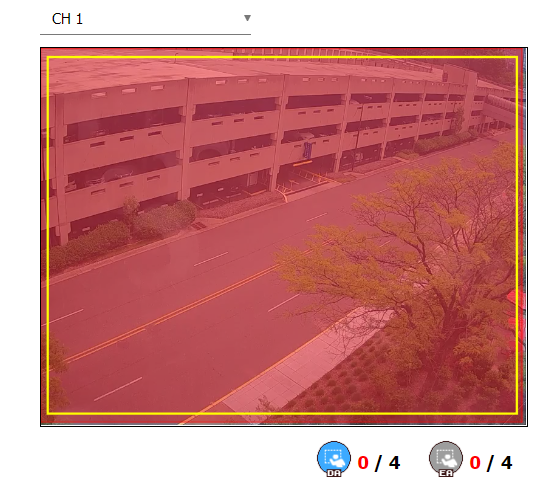

5. Click on the blue rectangle box to draw your Detection Area onto the Camera View, left click and drag from the top right to the bottom left (Figure 3)

Figure 3

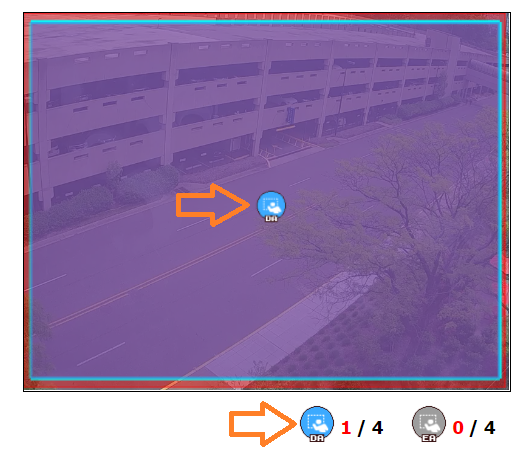

6. This will draw a blue area onto the field of view and increment the "DA" Detection Area counter to 1 (Figure 4)

Figure 4

7. Click OK at the bottom of the screen (Figure 5)

NOTE: Repeat steps 1 through 7 for every camera you wish to enable Event
Recording on

Figure 5

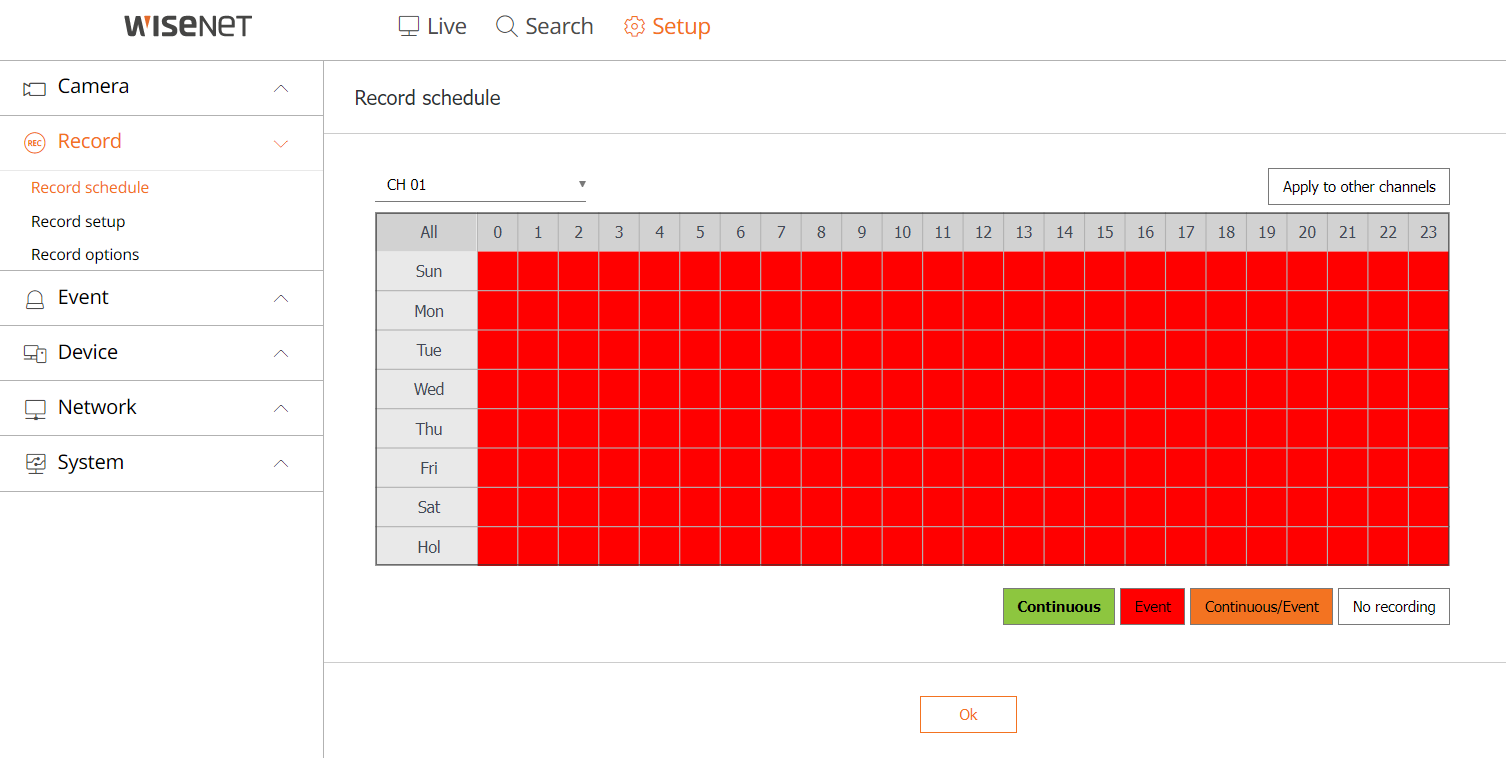

8. Go to Record>Record Schedule (Figure 6)

9. Click on Event or Event/Continuous (Figure 6)

10. Click on All in the top left corner of the schedule grid (Figure 6)

11. Click OK to save the changes to this channel schedule (Figure 6)

Figure 6

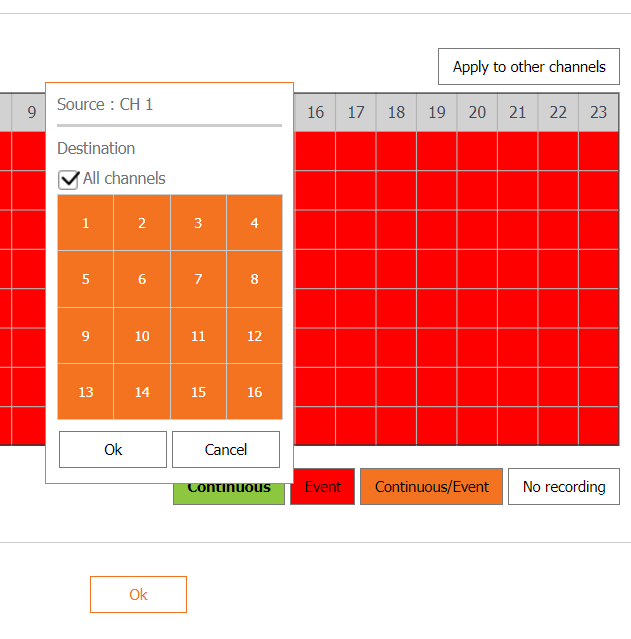

12. Click Apply to Other Channels Figure 7)

13. Check All Channels (Figure 7)

14. Click OK, then OK  again at the bottom of the schedule screen (Figure 7)

Figure 7

15. Go to Event>Event Rule Setup (Figure 8)

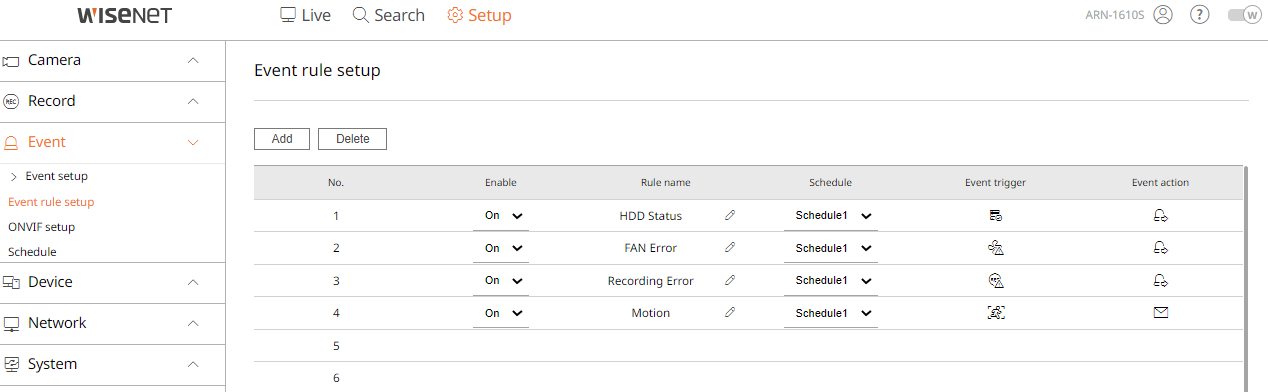

16. There should already be a rule for Motion on this screen, in the "Enable" column, click on the drop-down for Motion rule and select On (Figure 8)

Figure 8
