Applies to Models: All Hanwha Vision America IP cameras, encoders, decoders
Summary:
This article will walk you through assigning IPs and passwords to multiple devices at one time via Wisenet Device Manager.
NOTE: When two or more cameras, encoders, decoders, etc., are on the same IP address,
you will not be able to register them into an NVR; you also will not be able to
log in via a web browser.
Step By Step Guide:
1. Download Wisenet Device Manager and its manual from >Here<
2. Install Wisenet Device Manager
3. Make sure your PC's network card has an IP address assigned to it

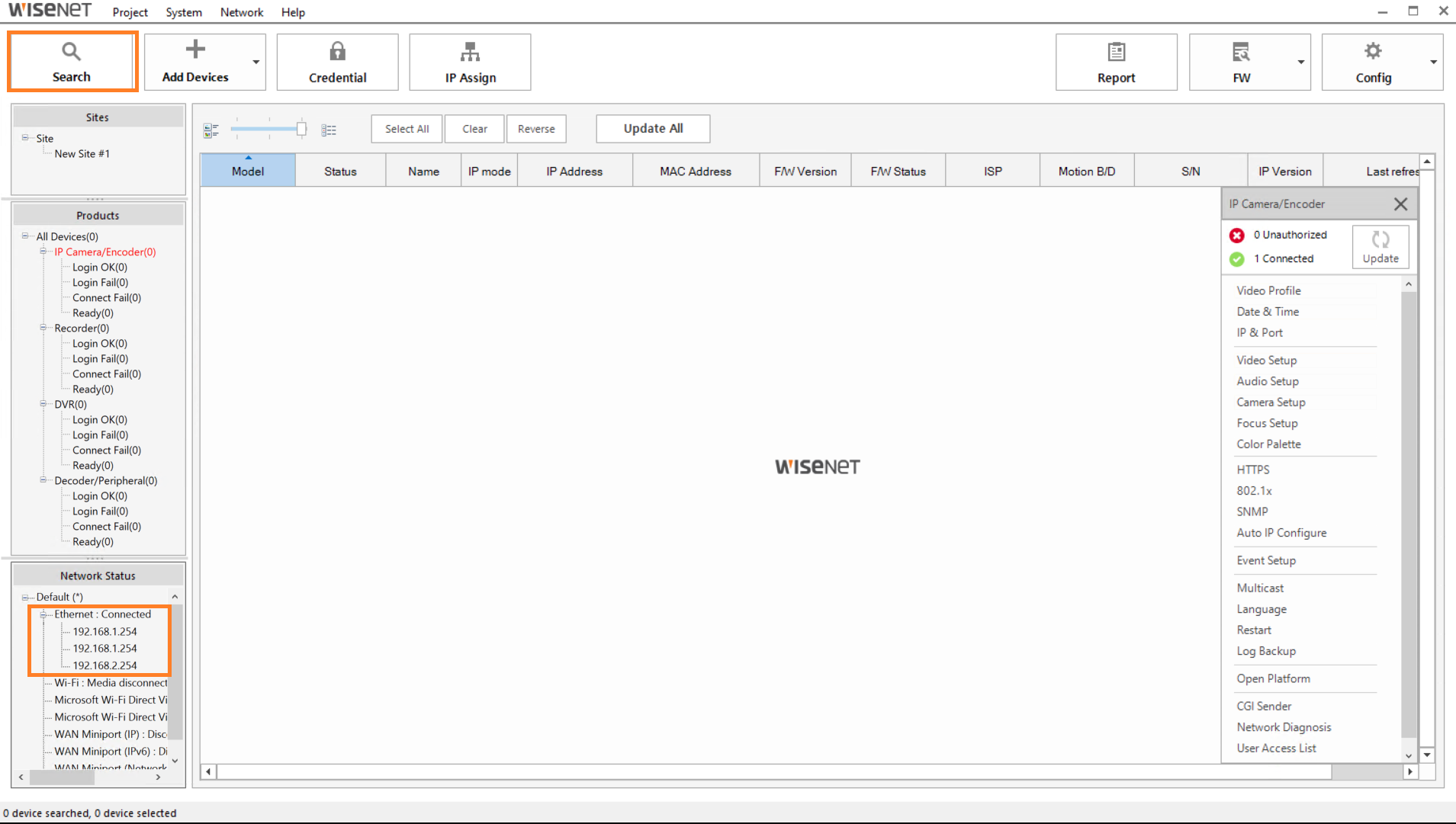

4. Click the Search button in the upper-left part of the screen (Figure 1)
NOTE: If search returns no results, try using the article >Here< to diagnose
the search issues
Figure 1
5. The devices found will appear in the device list (Figure 2)

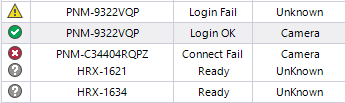

6. Device statuses:
- Login Fail devices will have a yellow hazard icon
- Login OK devices will have a green checkmark in a circle
- Connect Fail will have a red X in a circle
- NVR devices will have a grey question mark indicating they are ready to be accessed (Figure 2)
Figure 2
7. Click Ctrl+A to select all of the devices at once, they will become highlighted (Figure 3)
8. The Status column may say Need PW (Figure 3)
Figure 3

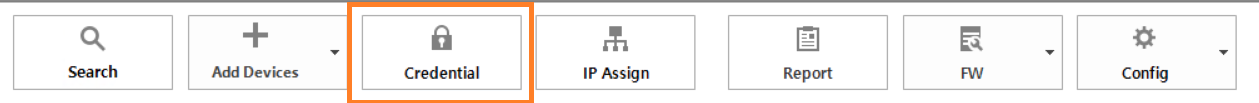

9. Click on Credential (Figure 4)
Figure 4

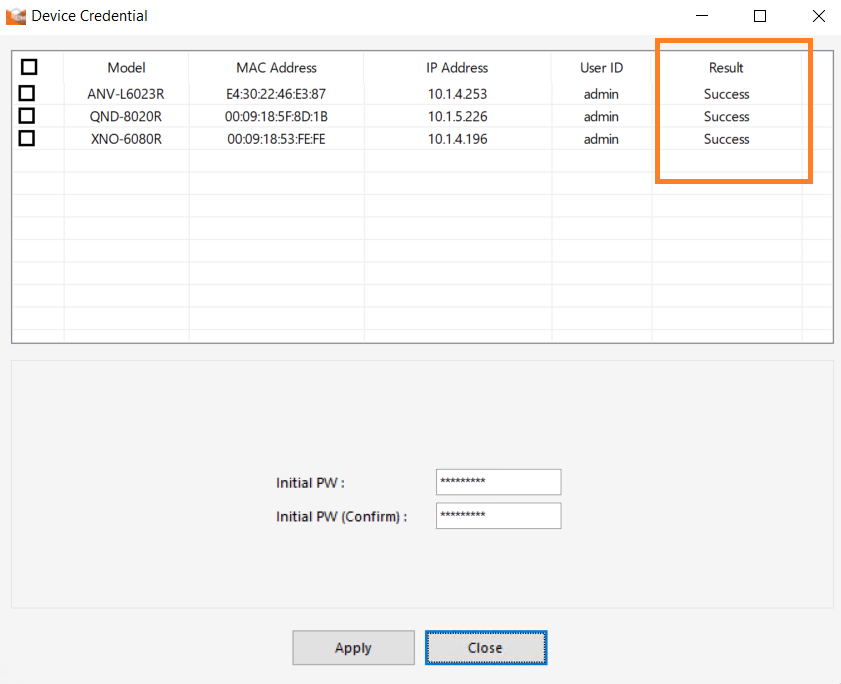

10. Enter your Password, and Confirm your Password (Figure 5)
11. Click Apply (Figure 5)
Figure 5
12. The Result column should say Success (Figure 6)
Figure 6
13. With the cameras selected, click IP Assign (Figure 7)
Figure 7

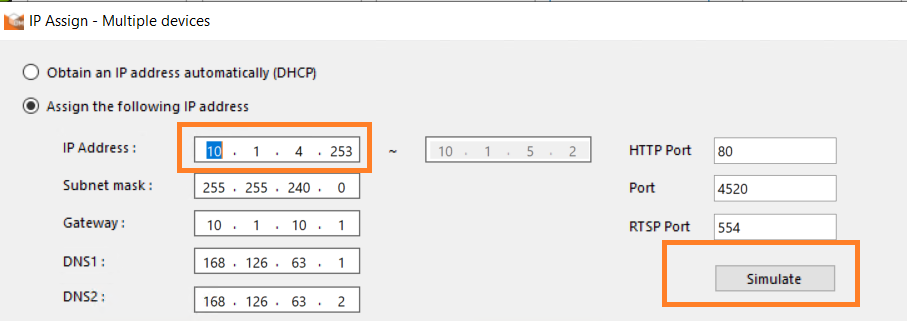

14. When there are multiple cameras selected, you put in the starting IP (Figure 8)
15. Click Simulate (Figure 9)
Figure 9
16. Click Apply (Figure 10)
17. The Result column should say Success (Figure 10)
Figure 10
