Applies to: WAVE

Summary

This article details the steps to create a Generic Event in WAVE using Hanwha AI Packs.

NOTE: This example uses the Traffic AI Pack, but this can be performed with all AI Packs.

Prerequisites

To create a generic event, the system must have the AI Pack installed, licensed, and the Object enabled in the AI Pack.

Creating a Generic Event

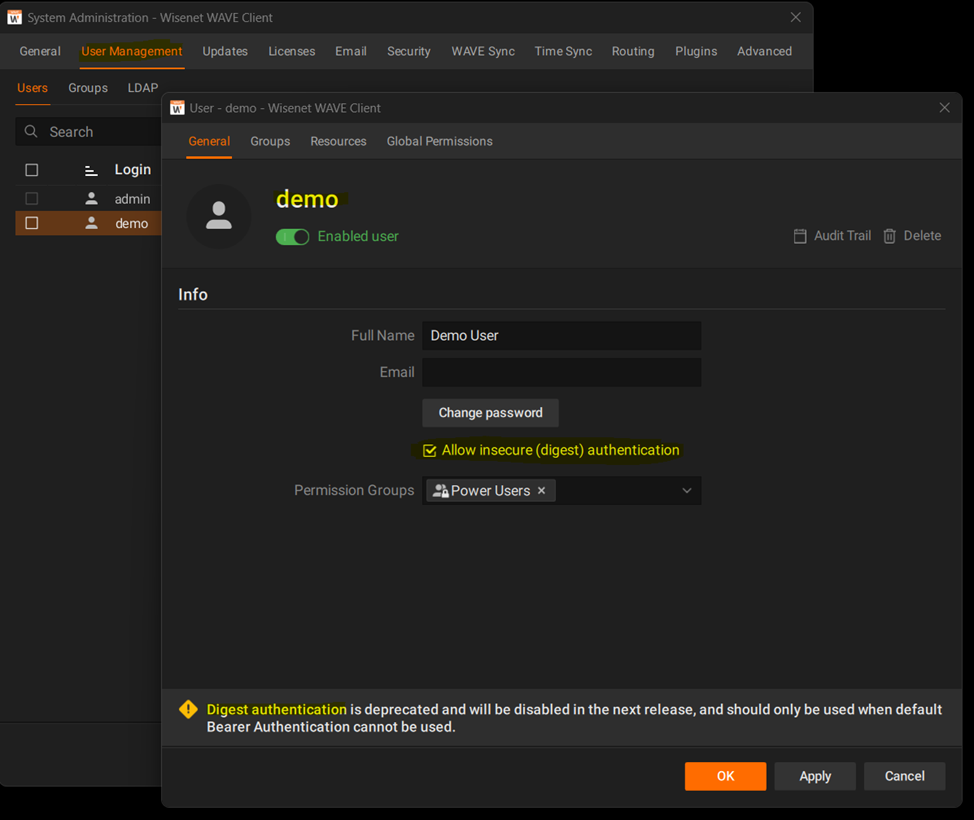

Create a New User Profile

1. Log in to WAVE Client as a user with Administrator permissions.

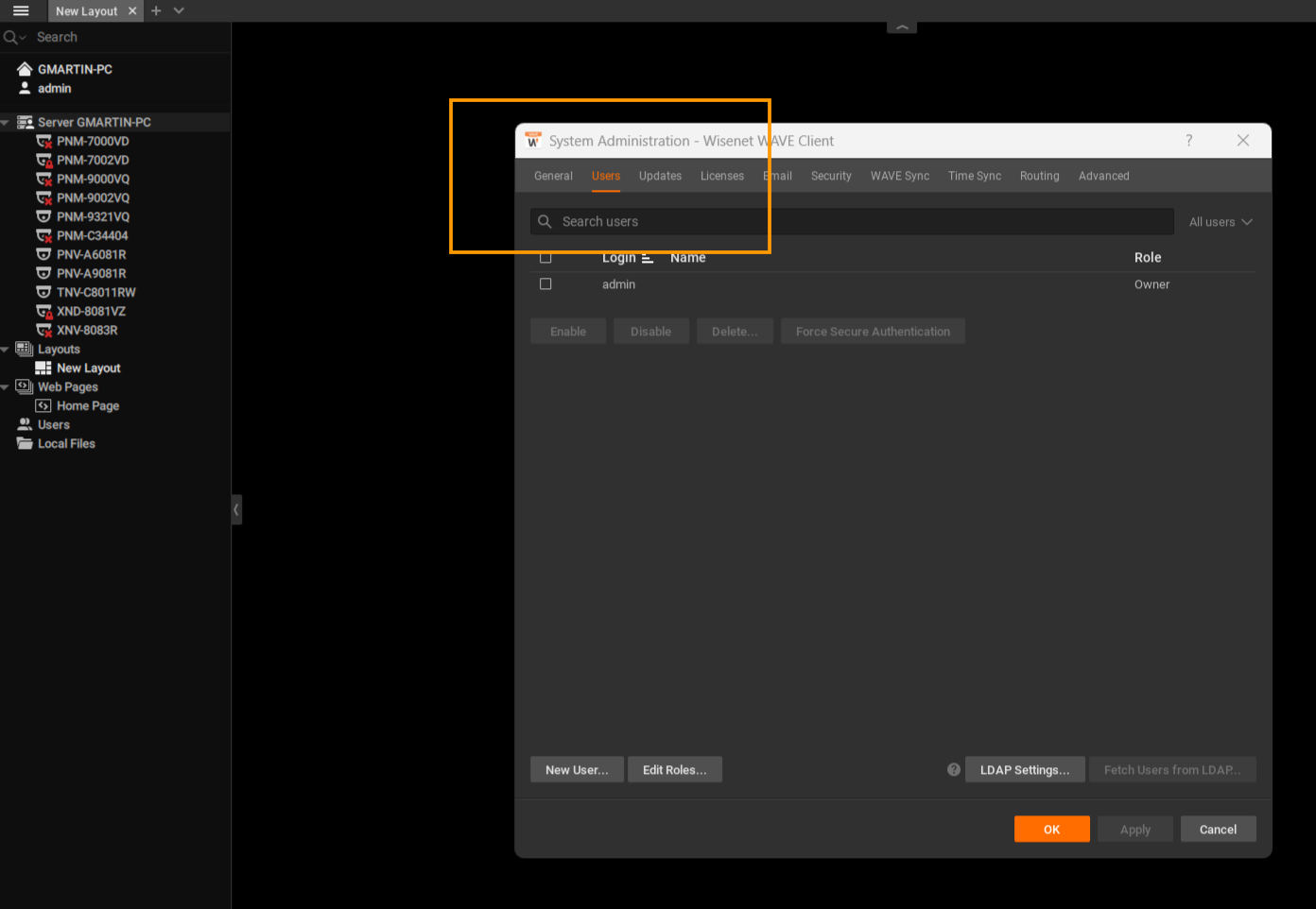

2. Select User Management > Users from the three-line menu in the top left.



3. Create a new user and assign the user role Advanced Viewer or Power User.



4. Click OK.

Test the URL

To test the URL:

1. Open a web browser on a machine that is in the same network as the WAVE server and paste the URL in the following format (with your WAVE server IP) in any browser.

   https://IP OF WAVE SERVER:7001/api/createEvent?caption=Description of Event

   For example:

   https://192.168.30.201:7001/api/createEvent?caption=SpeedLimit



2. Click Enter.



3. Enter the username and password created in Create a New User Profile.

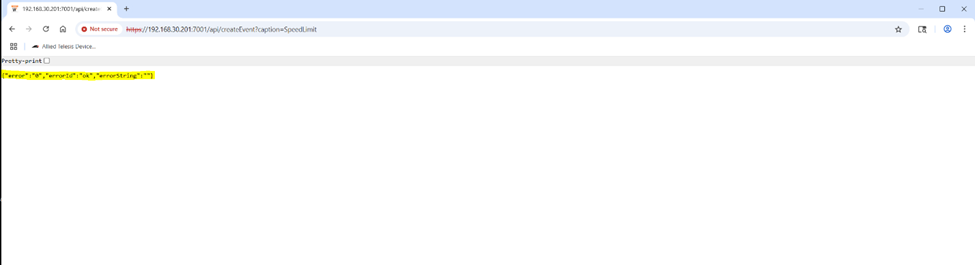

   The following appears on the screen: {"error":"0","errorId":"ok","errorString":""}



   This confirms that the URL is correct.

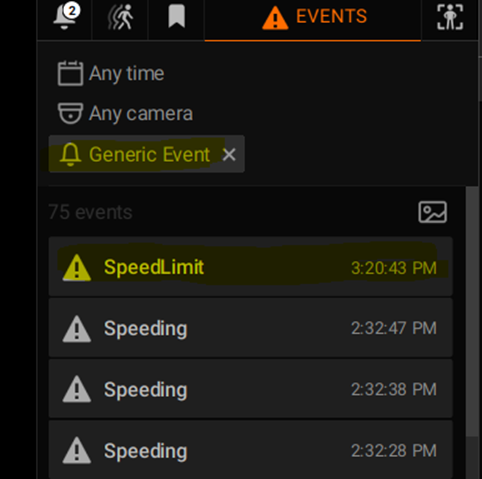

4. Confirm that the Event appears under the Event tab.





Transfer the Event

To transfer the event:

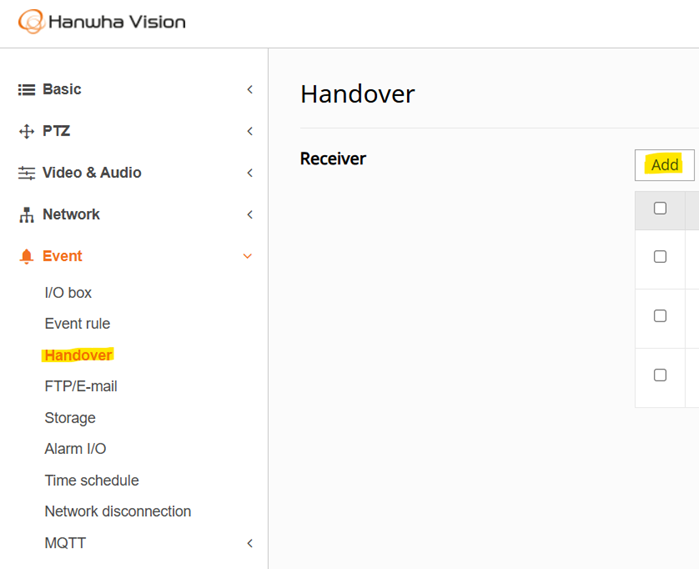

1. In the camera GUI, select Event > Handover > Add.

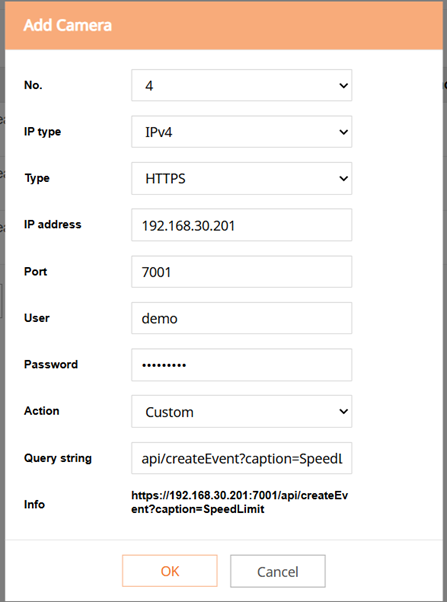

2. Enter the following for the respective fields:

   • Type: HTTPS
   • IP Address: IP of WAVE Server
   • Port: 7001
   • User: User created earlier
   • Password: Password created for user
   • Action: Custom
   • Query String: api/createEvent?caption=SpeedLimit




3. Click OK > Apply.

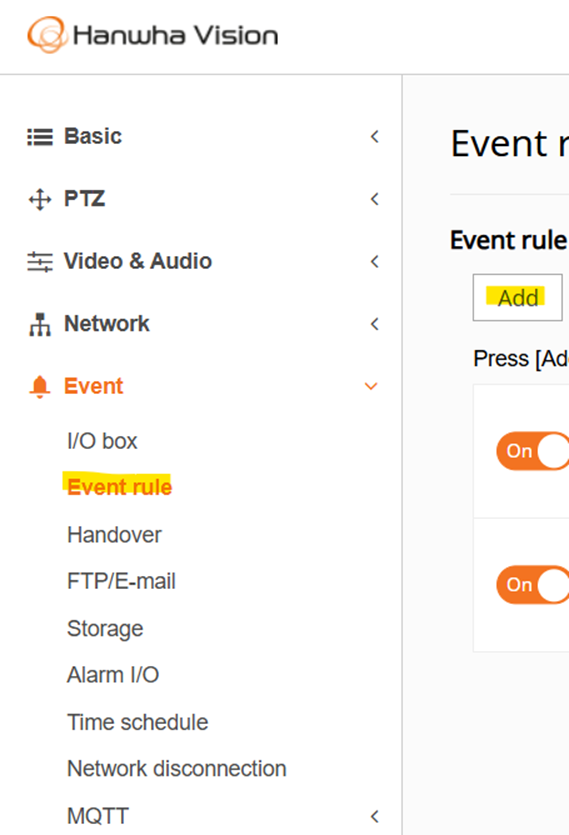

4. Select Event rule > Add.




5. Select the Event Trigger and Event Action Setting.



Create the Generic Event

To create the generic event:

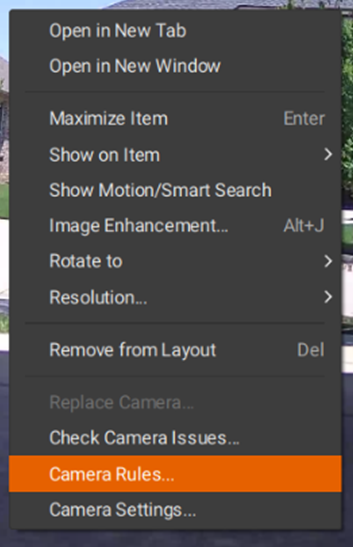

1. In WAVE, right click on the camera and select Create Rule.

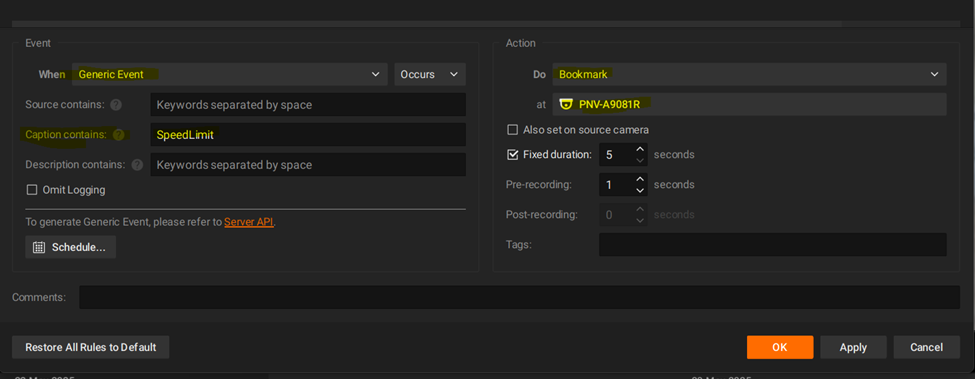

2. Enter the information to create an event:

   • When: Generic Event
   • Source Contains: Leave Blank
   • Caption Contains: Name of Event
   • Description contains: Leave Blank
   • Do: Bookmark
   • At: Select your Camera


3. Click Apply.

   The event is now listed under the Events tab in WAVE.
