Applies to Models: WRR-5501; this article does not apply to Dell-built P or Q series Servers

Summary:

Over time, certain parts of the server may need to be reseated to restore normal function. This article will cover re-seating the RAM modules and the CMOS battery in legacy WRR-5501s.

Explanation of Behavior:

• Two screws hold the lid to the chassis, one on each side.

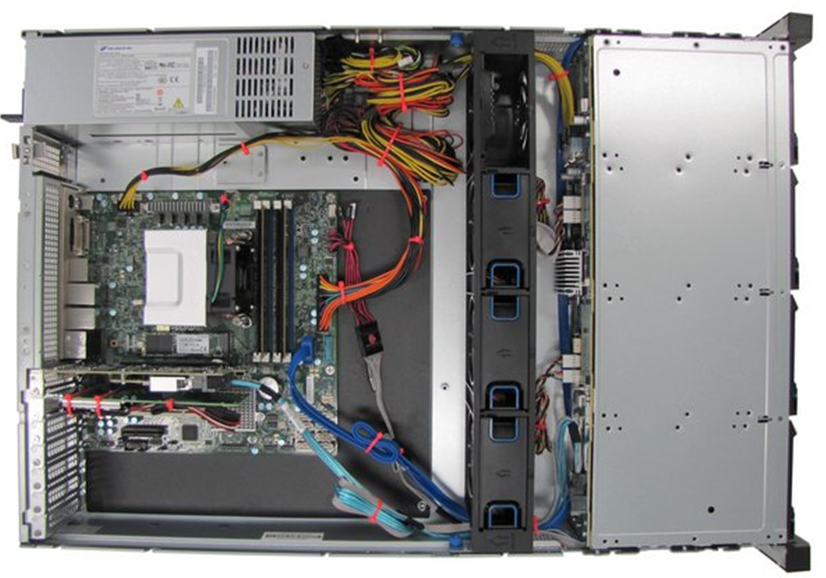

• Once the lid screws are removed, you can open the lid to the chassis interior without damaging the lid.

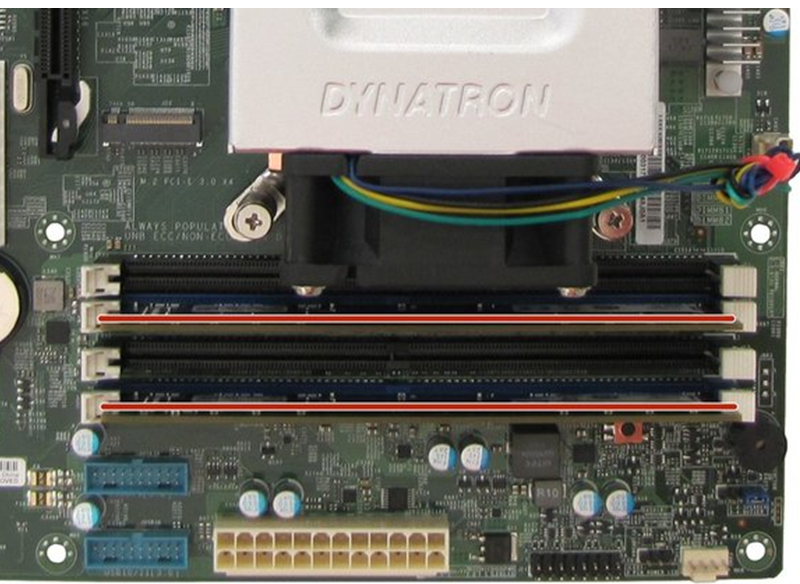

Reseating the RAM modules:

• Press on the white tabs to release the memory modules.
• Re-insert the memory modules and make sure they are secure.




CMOS battery reseating process:

1. Disconnect the server power cord from the AC power source.
2. Disconnect all peripheral devices connected to the server chassis.
3. Remove the lid.

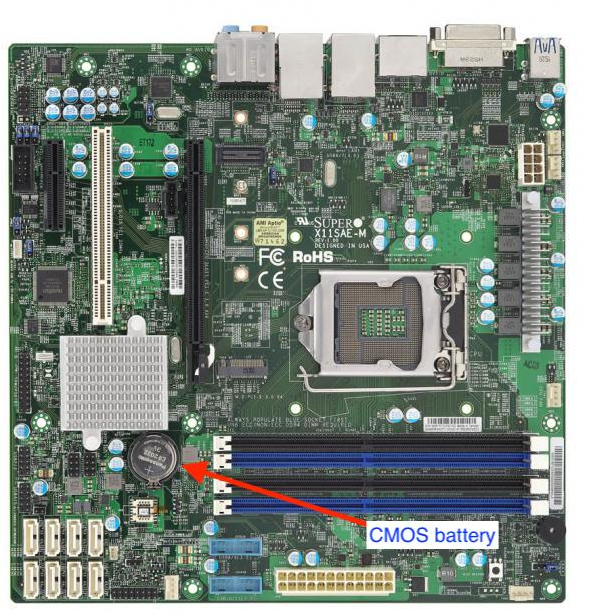

4. Find the battery on the board.
5. Remove the battery
6. Wait 1–5 minutes
7. Reconnect the battery.
8. Put the system cover back on.
9. Restore AC Power to the server.
10. Re-connect the peripherals to the server.
11. Power up the server
