This product is not available nor supported in the US or Canadian Markets.

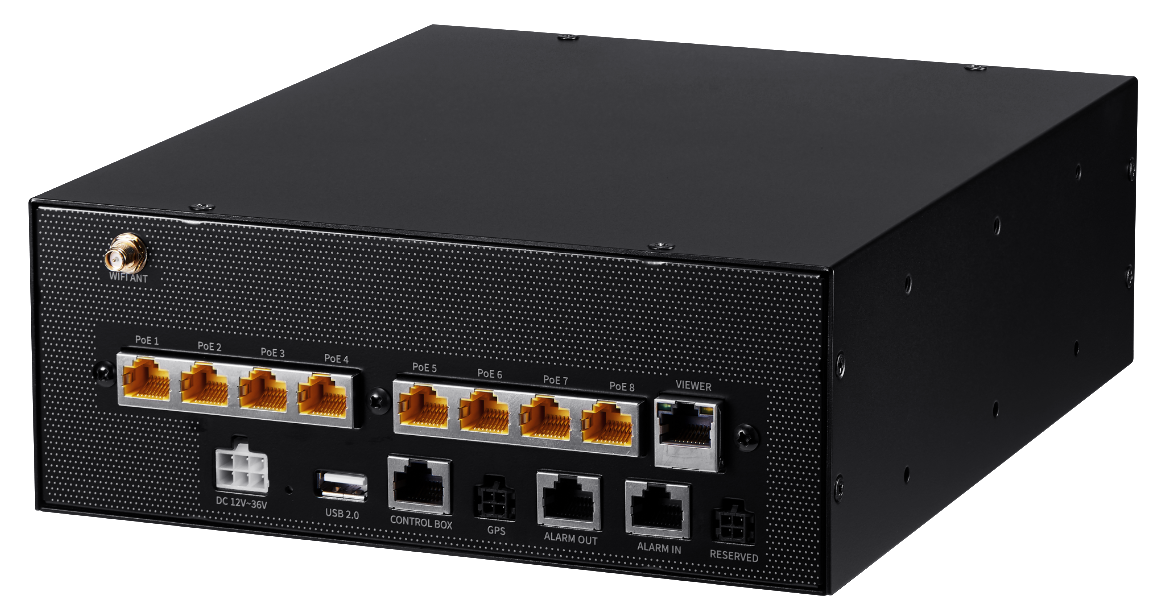

TRM-810S
8CH 8M H.265 Mobile NVR
• Up to 8CH 8megapixel supported
• Max. 50Mbps/80Mbps recording
• 2 SATA (Front-swap)
- Max. 2TB (HDD, Non-RAID mode)
- Max. 4TB (SSD, Non-RAID mode)
• RAID 1 support
• Wisenet (SUNAPI) / ONVIF camera recording
• H.265, H.265, MJPEG codec supported
• WiseStream support
• Max. 50Mbps/80Mbps recording
• 2 SATA (Front-swap)
- Max. 2TB (HDD, Non-RAID mode)
- Max. 4TB (SSD, Non-RAID mode)
• RAID 1 support
• Wisenet (SUNAPI) / ONVIF camera recording
• H.265, H.265, MJPEG codec supported
• WiseStream support
-
_A&E Document_TRM-810S_190604_EN.doc
100 KB Download
-
_DataSheet_TRM-810S,TRM-410S_190424.pdf
700 KB Download
-
_CAD_TRM-810S_190124.pdf.pdf
300 KB Download
-
_CAD_TRM-810S_190124.dxf.dxf
4 MB Download
-
_Manuals_TRM-1610S,TRM-1610M,TRM-810S,TRM-810M,TRM-410S_190201_ENrf.pdf
9 MB Download
-
_Product Specifications_TRM-1610S,TRM-1610M,TRM-810S,TRM-810M,TRM-410S_190201_EN.pdf
10 MB Download
-
Certification_TRM-810S_190214_EN_EMC_CE(EN50155,EN61373)_0.PDF
2 MB Download
-
_Quick Guide_TRM-1610S,TRM-1610M,TRM-810S,TRM-810M,TRM-410S_190201_EN.pdf_
9 MB Download
-
Certification_TRM-810S_190214_EN_RF_CE_2.pdf
3 MB Download
-
Certification_TRM-810S_190214_EN_Report_FCC_1.pdf
9 MB Download
-
Certification_TRM-810S_190215_EN_EMC_CE(EN 301 489-1,-17)_3.pdf
3 MB Download
-
Certification_TRM-810S_190215_EN_EMC_CE(EN 50121-3-2)_4.pdf
2 MB Download
-
Certification_TRM-810S_190215_EN_EMC_CE(EN 50130-4)_5.pdf
3 MB Download
-
Certification_TRM-810S_190220_EN_DoC_CE_6.pdf
200 KB Download
-
Certification_TRM-810S_190221_EN_FCC_7.pdf
100 KB Download
-
Certification_TRM-810S_190225_KO_Report_KC(RF)_9.pdf
2 MB Download
-
Certification_TRM-810S_190226_EN_UL_10.pdf
60 KB Download
-
Certification_TRM-810S_190225_KO_Report_KC(EMC)_8.pdf
4 MB Download
-
Certification_TRM-810S_190226_KO_KC(EMC규격)_12.pdf
300 KB Download
-
Certification_TRM-810S_190228_EN_LVD_CE_11.pdf
1 MB Download
