Applies to Model: XNB-6001

Summary:

This article provides connector wiring information for creating a custom cable for the XNB-6001 camera.

Step By Step Guide:

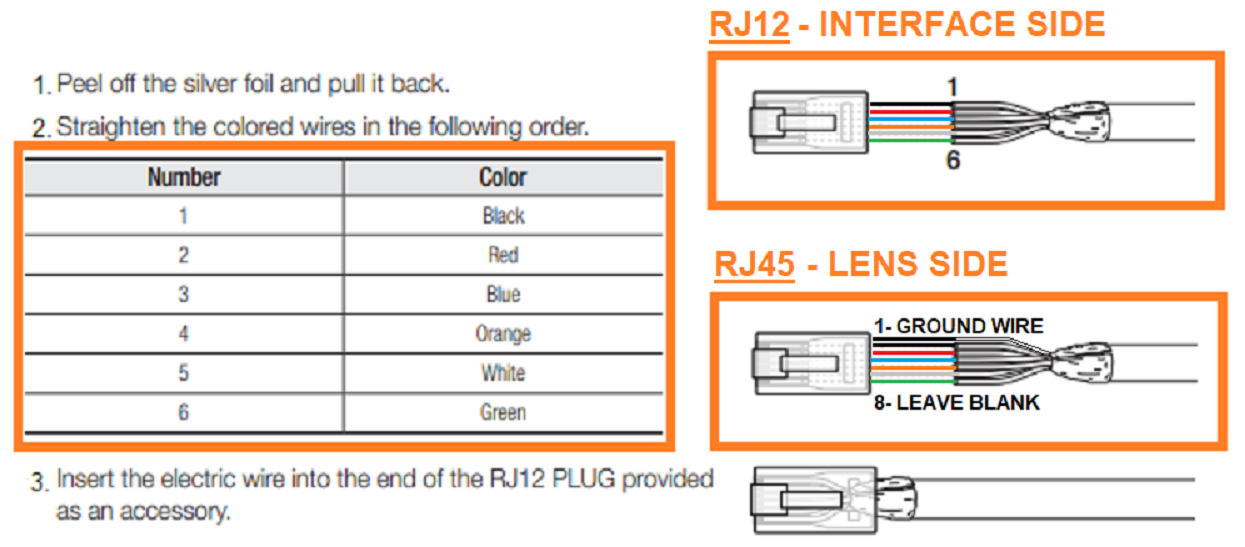

The following wiring diagrams have the description of the color code for both sides of the cable, the RJ12 (6 pins) and the RJ45 (8 pins).

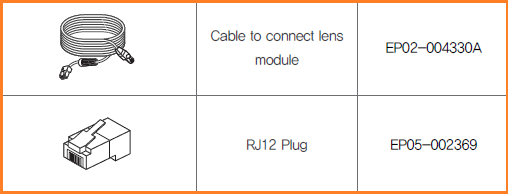

NOTE: The product always comes with the cable for the lens module and the RJ12.
