Summary
As soon as a server is started and connected to a System, it automatically performs device discovery in its network for devices that are accessible via broadcast. Once a device is discovered, it is displayed in the Resource Tree. If a device is not accessible via broadcast, for instance if is located in a different network or can only be accessed via internet, it is not discovered automatically. In this case, Wisenet WAVE provides the ability to add a device manually.
Adding a Device Manually

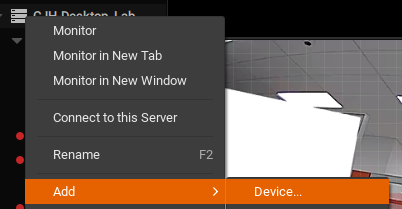

- Right-click on the server name in the Resource Tree on the left side of the WAVE client user interface.
- Select Add > Device.
- If you have more than one server, in the To drop-down, select the appropriate server to add the device.

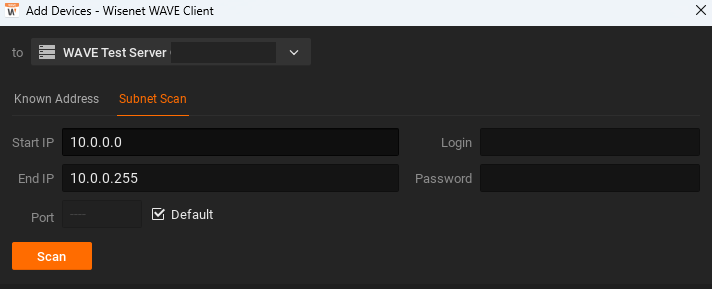

- Search a single IP address in the Known Address tab, or use the Subnet Scan to add multiple devices simultaneously.
- Select the desired devices and click Add selected, or click Add all devices to add devices to the Resource Tree.
- Click X at the top right to close the Add Devices window when done adding devices.
