Applies to: Hanwha cameras that support non-AI-based Line Crossing Analytics

Summary

This article explains how to configure a non-AI camera for IVA Line-Crossing events and how to confirm that configured Line-Crossing events are occurring in the camera logs.

Configuring IVA Line Crossing

1. Navigate to the camera's IP address in your browser.


2. Log in as admin.


3. Click on the gear to go to the camera setup screen.




4. Navigate to Basic > Date & Time.


5. Set the proper Date & Time to identify logging events correctly.


6. Navigate to Analytics > IVA > Virtual Line tab.


7. Select the checkboxes to enable IVA and Crossing.


8. Click on the screen and drag the line across the intended area.


9. Line crossing events can be uni-directional or bi-directional, so select the best option for your scenario.




   NOTE: Move the line forward or backward to increase or decrease
   events until the output is what you are looking for.

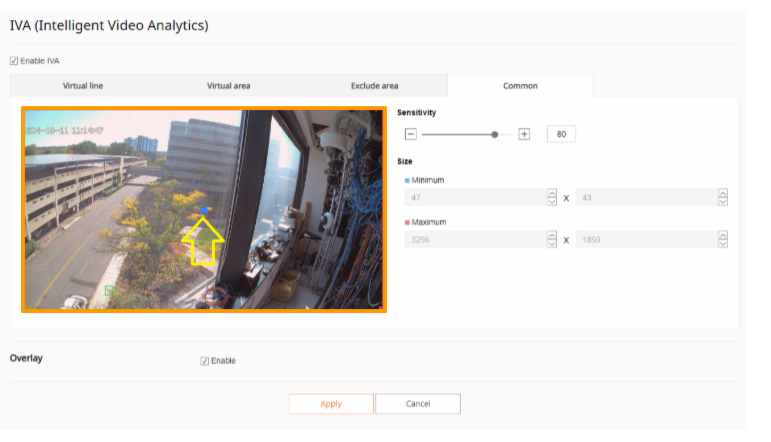

10. On the Common tab, verify the Minimum and Maximum settings are correct for your application:


    • In the image below, the event you are trying to capture must be larger than the blue box.  For example: the blue box should be smaller than a car in the image.


    • The orange box in the image below is for the Maximum setting. This should be set so the object is smaller than the largest object.  For example: the orange box should be larger than a car in the image.




11. Once your Line Crossing analytic is configured, verify that it is being executed by navigating to System > Log > Event Log and locate your IVA Event.
