Applies to Models: Wisenet Wave

Summary:

This article will walk you through adding an RTSP URL to Wave

Step By Step Guide:

1. Open WAVE

2. Log into WAVE with an administrator-level account

3. Right-click on the server in the WAVE system tree (Figure 1)

4. Select Add Device (Figure 1)

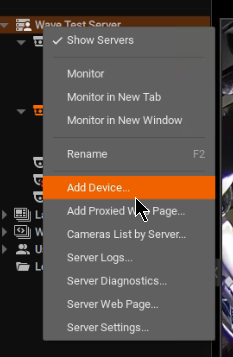

Figure 1

5. Enter the properly formatted RTSP URL for the make and model device you wish to register (Figure 2)

6. Provide the admin credentials for that device (Figure 2)

7. Click Search (Figure 2)

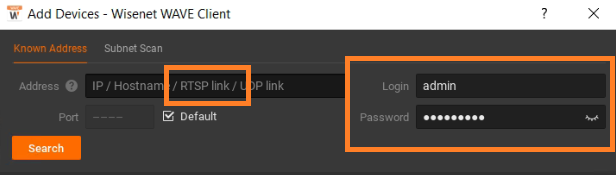

Figure 2

8. Check the boxes next to all of the channels and devices you wish to add (Figure 3)

9. Click Add All Devices (Figure 3)

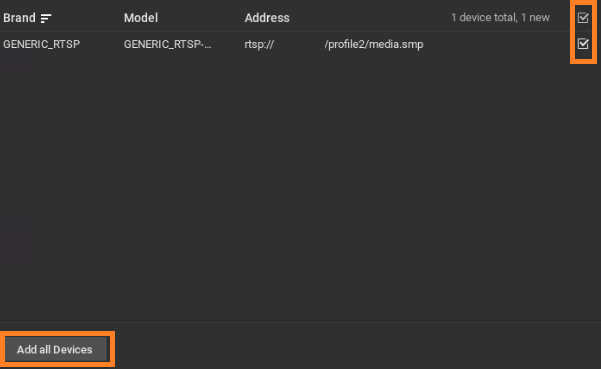

Figure 3
