Applies to Models: PNM-C32084RQZ-8XE4T-W

Summary:

The PNM-32084RQZ shares an internal network switch with the onboard NVIDIA Jetson, allowing the WAVE Server to add the host camera using its internal IP. Using the internal IP minimizes network bandwidth and eliminates network dependency, allowing the WAVE hosted on the NVIDIA Jetson to continue recording camera streams even if the network goes down. This article provides the instructions for adding host camera streams to WAVE.

Step By Step Guide:

To add host camera streams to WAVE:

1. Open the WAVE Client.


2. From the resource tree on the left, right-click the server name and select Add Device.

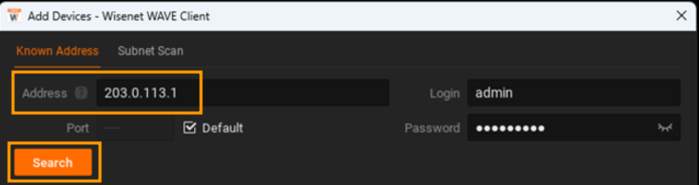

3. Enter the camera IP (203.0.113.1) in the Address field and click Search.

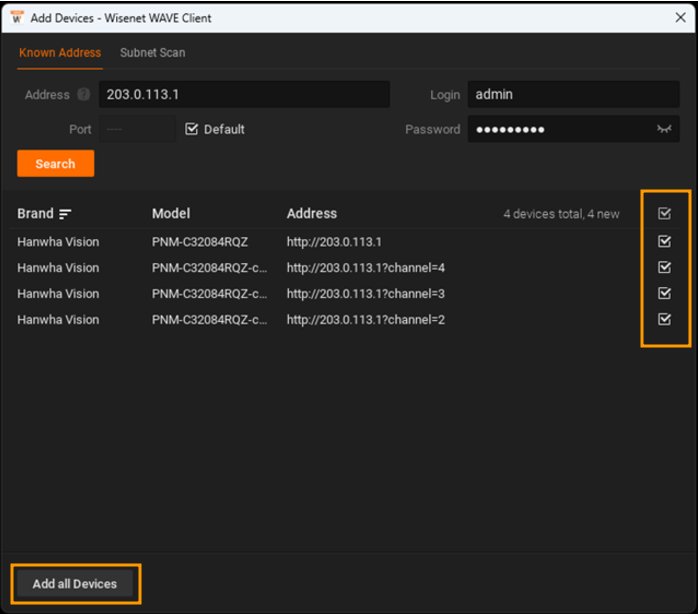

4. Check the boxes next to the devices to add, then click Add all Devices.
