Applies to: WAVE
Summary:
Plugin Settings allow users to optimize analytics performance for their specific use case. This article provides instructions for setting up the AI Plugin.
Step By Step Guide:
To navigate to the plugin settings:

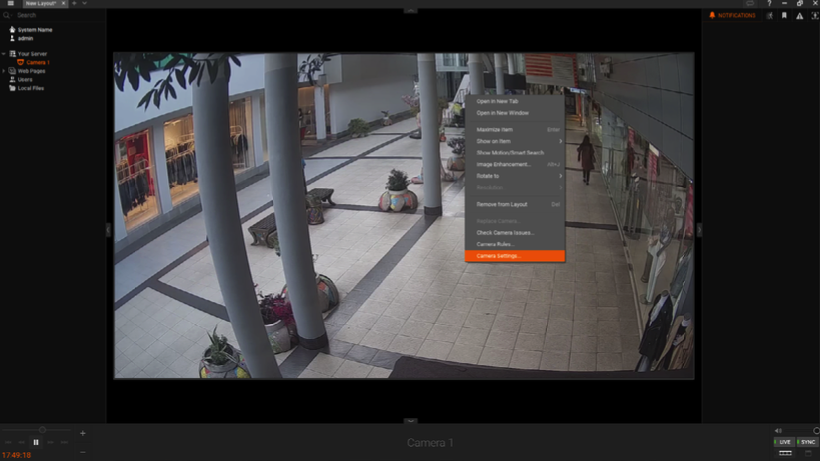

- From the Wisenet WAVE Client, right-click the video stream and select Camera Settings.

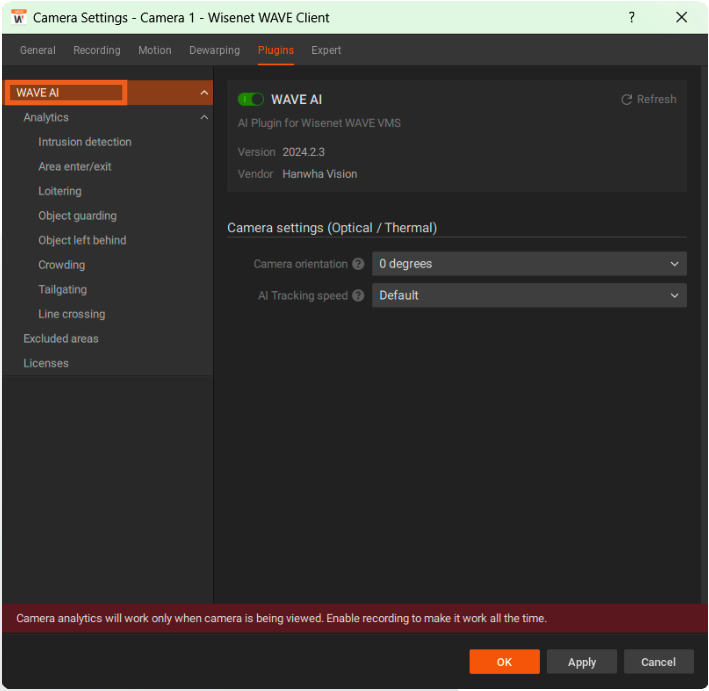

- Click the Plugins tab and select WAVE AI on the left menu panel.
Camera Settings
Camera orientation
If you have changed the default orientation of the camera in Camera Settings, update the camera orientation in the Plugin Settings to match.
AI Tracking speed
AI Tracking speed enables users to adjust the frame rate at which the AI processes data.
Modifying this from the default setting may impact server performance and reduce the number of AI streams that can run simultaneously on the same device.
Default | 5 FPS | Optimized for most of the security surveillance use cases |
Fast | 10 FPS | Optimized for tracking faster moving targets (e.g. cyclists) |
Very Fast | 15 FPS | Optimized for capturing targets that move very fast (e.g. electric scooters) |
Excluded Areas
Objects in excluded areas would not trigger any events from the configured analytics.

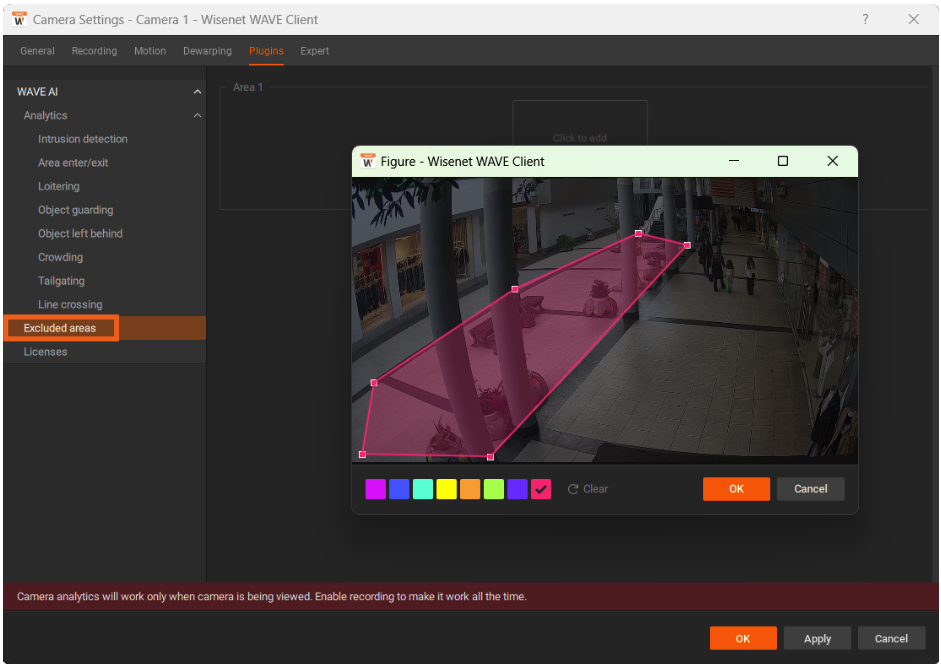

To navigate to the Excluded Areas settings:
- From the Wisenet WAVE Client, right-click the video stream and select Camera Settings.
- Click the Plugins tab and select WAVE AI on the left menu panel.
- Click Excluded areas.
- Apply Excluded Area settings to reduce recurring false positives and enhance detection precision in the area of interest, especially when there is persistent movement in adjacent areas (e.g., a busy road near a sidewalk).
NOTE: Applying Excluded area settings does not impact recordings on
disc. This feature is not a replacement for privacy masks and should
be used to focus detection on specific parts of the scene.
