Applies to: WAVE, DMPro

Summary:

This article provides instructions for adding Wisenet WAVE to OnGuard.

Step By Step Guide:

To add Wisenet WAVE to OnGuard:

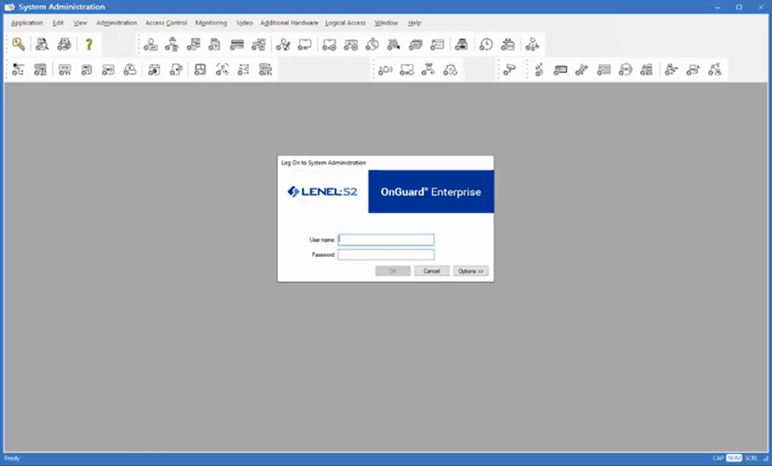

1. Log in to OnGuard’s System Administration.

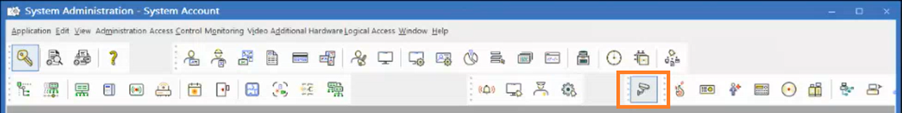

2. Click the Digital Video icon.

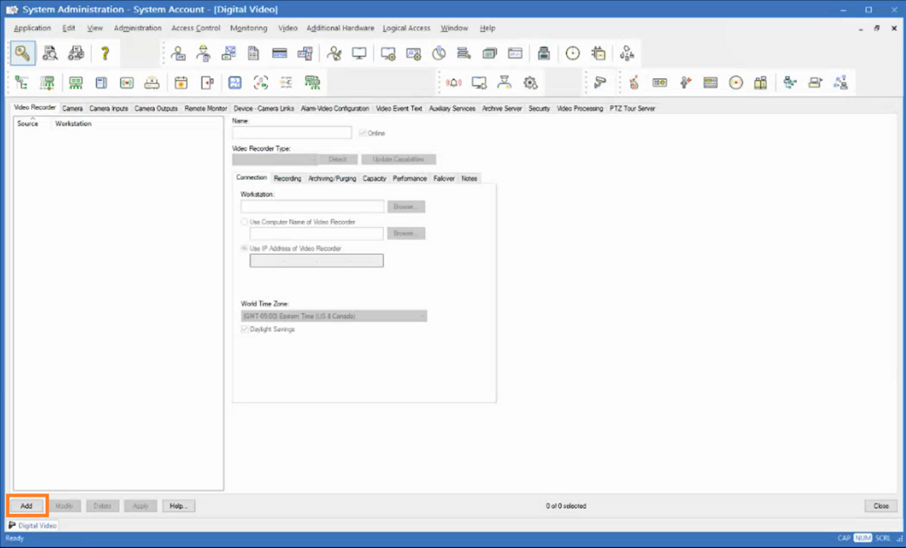

3. Click Add to add a new video recorder.

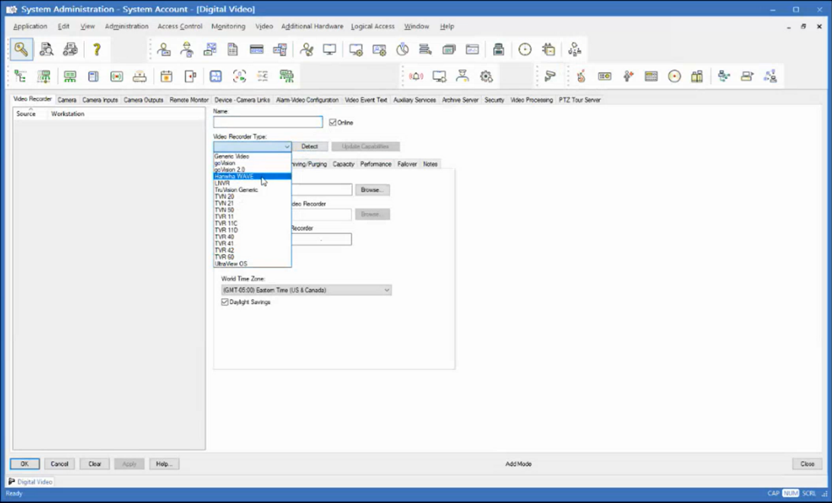

4. Select Hanwha WAVE from the Video Recorder Type dropdown menu.

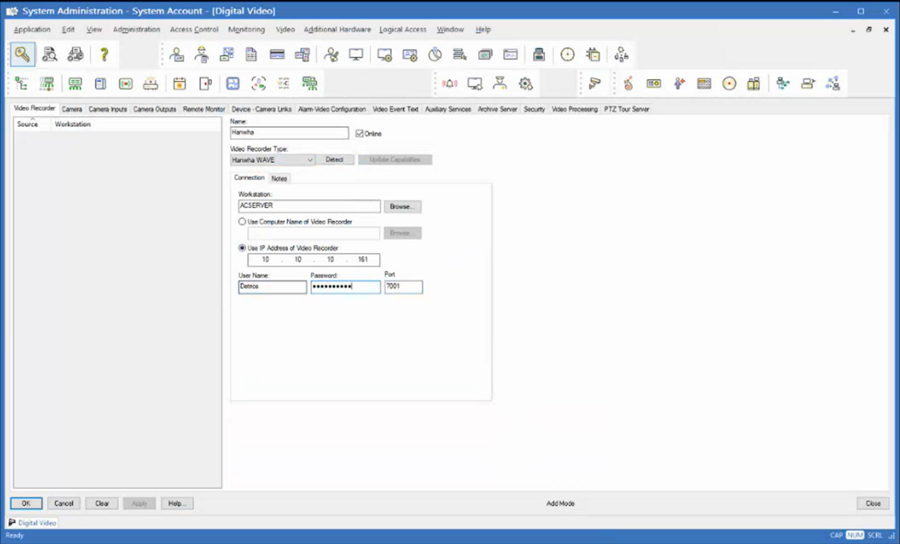

5. Complete the fields appropriate to your Wisenet WAVE VMS server and click OK.

   Name - Enter a name for the Wisenet WAVE server being added.
   Workstation - Browse for the OnGuard server in your network.
   IP Address of Video Recorder - Enter the IP address of the Wisenet WAVE server being added.
   Username - Enter the username.
   Password - Enter the password.
   Port - Enter the port for the Wisenet WAVE server (Default is 7001).

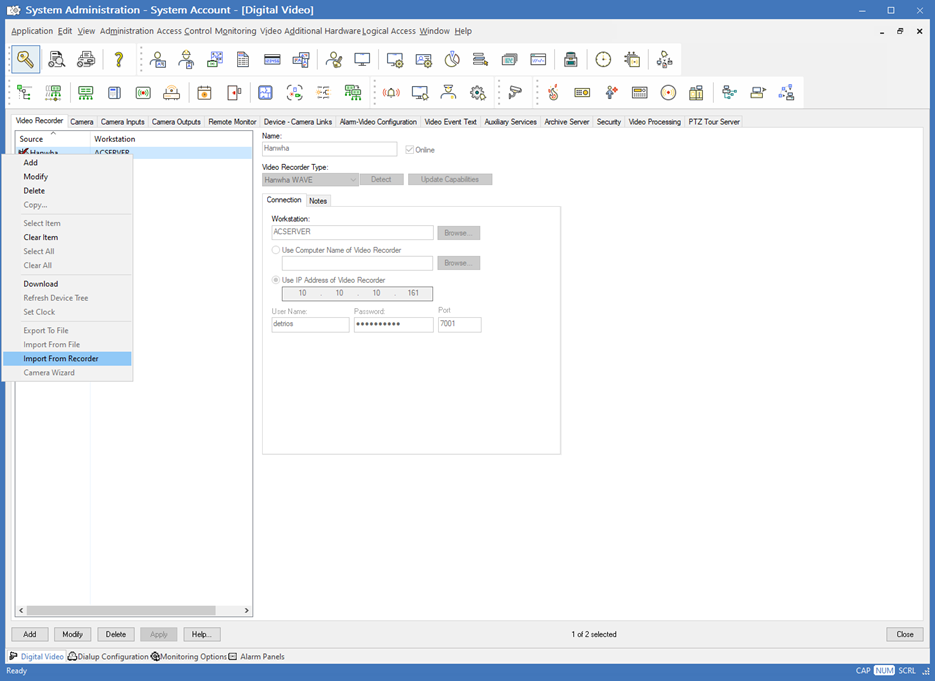

6. Right-click the Hanwha Video Recorder tab and select Import from Recorder.

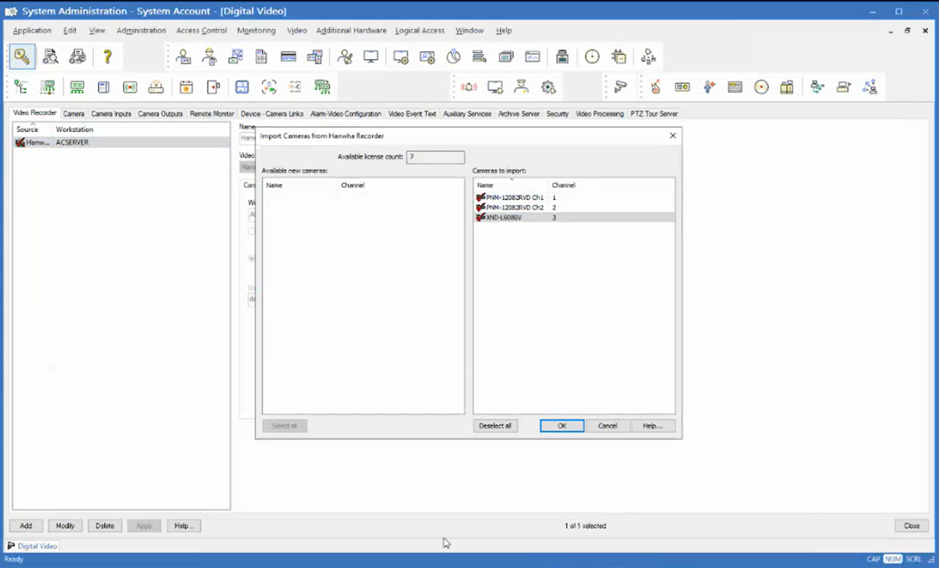

7. Select the cameras to import and click OK.

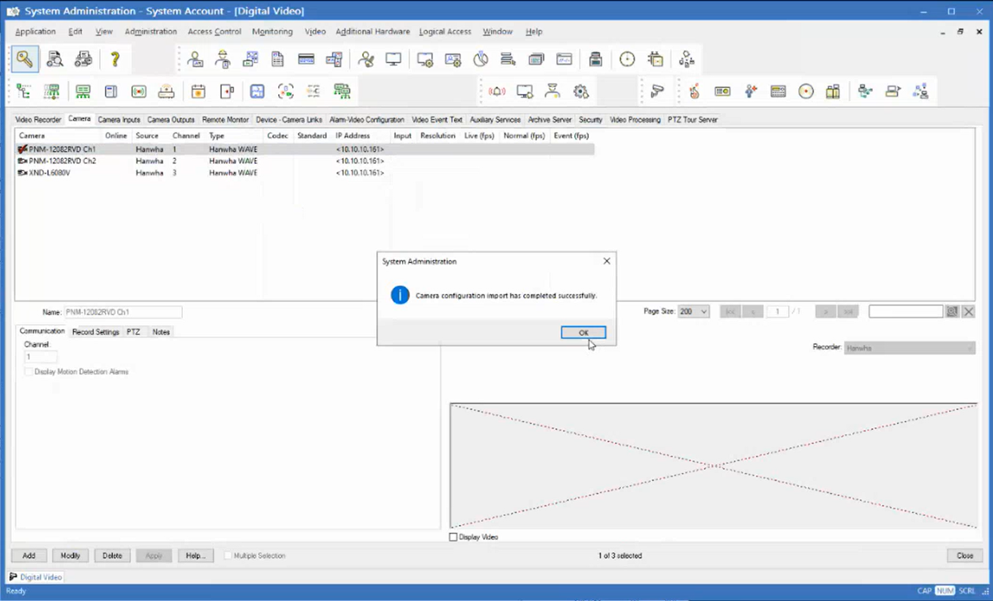

8. Click OK to complete importing the cameras.
