Applies to Model: TNS-9050IBC
To maintain standards, Hanwha Vision uses the web UI for all knowledge base articles about product configuration. Open Chrome, enter the IP Address of your device into the URL bar, and press enter. If you are not using the web UI to configure your device, please refer to the user manual for your product.
Summary:
This article provides instructions on configuring the Hanwha Barcode Reader camera.
Step By Step Guide:
Adjust the LED brightness of your barcode camera
- Open a web browser and navigate to the IP address of the camera.
- Enter the admin username and password.
- On the Live Screen, click CH 1 and click the Barcode icon to open the configuration menu seen below. (CH 1: Monochrome lens for barcode reading and CH 2: is the Visible lens)

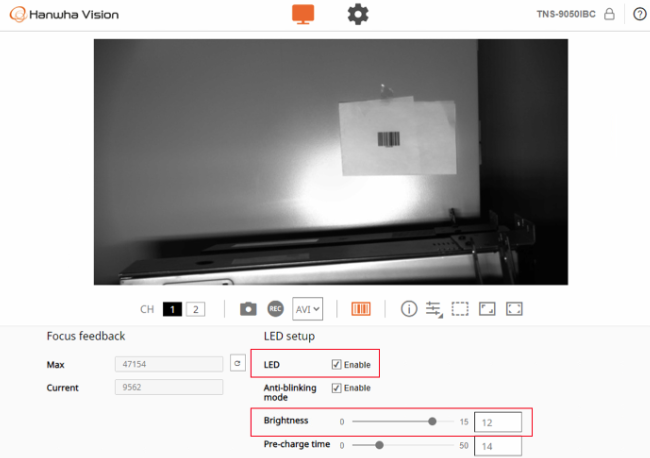

- Check LED Enable and adjust the Brightness by using the slide bar to ensure the barcode is clearly visible on the screen.
Adjust the focus of your barcode camera
- Remove the lens cover by loosening the fastening screws using the Torx L wrench provided.

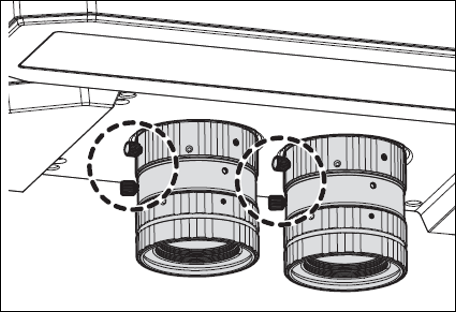

- Adjust the focus turning the fixing screws of the lenses.
Check scanned barcode data from camera webviewer

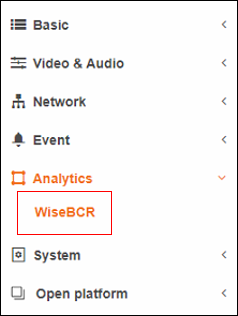

- Navigate to: Setup -> Analytics -> WiseBCR. The application will open in a new tab.
- In the new tab, navigate to Setup and uncheck the Barcode de-duplication option if you are testing with the same barcode. This option will allow you to scan the same barcode repeatedly.

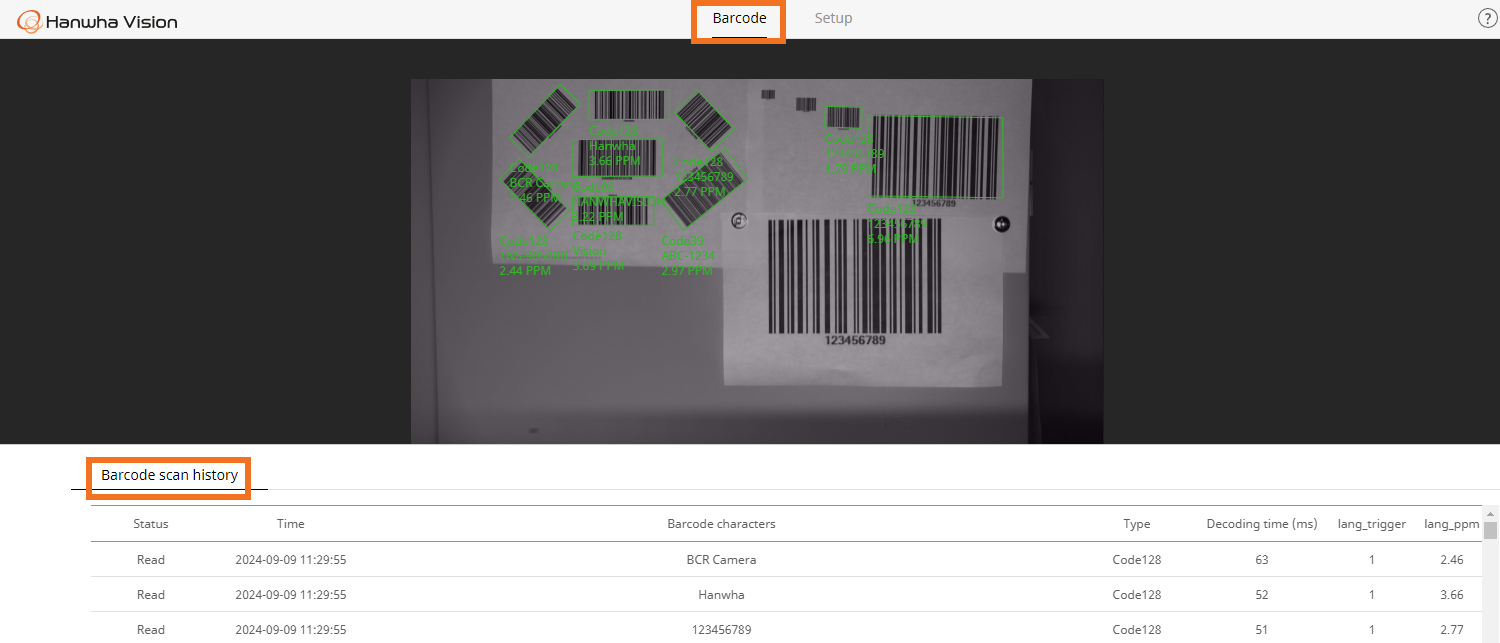

- Select the Barcode menu to verify that the barcode data is being scanned accurately by viewing the displayed list in the Barcode scan history list.

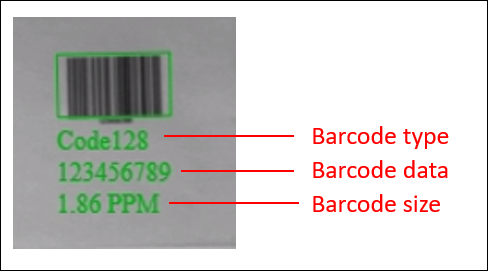

- On the live screen of the WiseBCR application, the scanned barcode will show:
- Barcode type
- Barcode data
- Barcode size
Troubleshooting: If the barcode camera cannot scan the barcode
- Make sure the barcode size on the screen is a minimum of 1.3 PPM to a maximum of 7 PPM.
- Make sure the focus is correctly adjusted. You can digitally zoom-in with the mouse wheel from the live screen page to verify the details.
