Applies to: Dell-Built Hanwha VMS Servers

Summary

This article provides instructions for configuring the Perc H755 controller on Hanwha's S204X model servers, which use the Dell PowerEdge 760XS(L) chassis. By following these instructions, you will create two virtual disks: one in RAID 1 and the other in RAID 6.

WARNING: Do NOT perform this on a system with data that needs
to be retained unless the data has been copied to another
system. All data in the existing array will be lost.

Configuring the Perc H755 Controller

To configure the Perc H755 controller:

1. Access the iDRAC Controller.

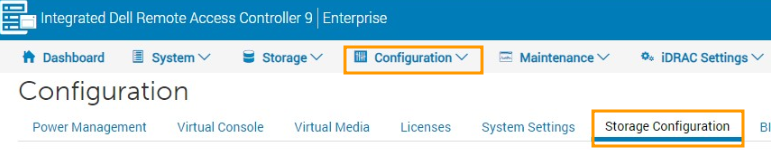

2. On the top menu, click Configuration then Storage Configuration.

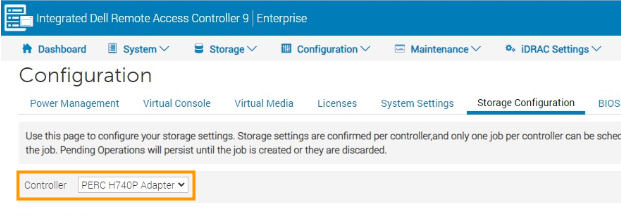

3. From the Controller drop-down menu, select the H755 controller.

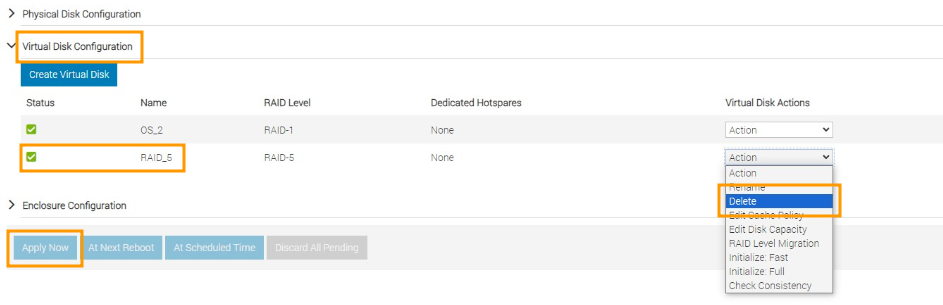

4. Expand the Virtual Disks Configuration section.


5. Check the box next to RAID 5.


   IMPORTANT: Do NOT check the OS 2 array.

6. In the RAID 5 line, select Delete from the Virtual Disk Actions drop-down menu.


7. Click Apply Now.




8. Delete the current RAID 5 Virtual Disk in the BIOS.

   See How to Delete a Virtual Disk in Pre-Boot Environment.


9. Click Storage then Physical Disks.




10. From the Controller drop-down menu, select the H755 controller.


11. Check the boxes next to the disks you want to add to the array then click Create Virtual Disk.




12. When the Creator Wizard appears, select the following fields:

    Name - Storage

    Layout - RAID 6

    Stripe element size - 512kb

    Write Policy - Write Back


    NOTE: These are the settings types for the Creator Wizard.
    Leave all other fields as their default setting.

13. Click Apply Now.
