Applies to: SightMind
Summary:
The Cumulative People widget makes it simple to keep track of total visits. Based on the People counting rule from the camera, it displays the cumulative visitor count. If multiple people counting rules are assigned to the widget, it shows the combined value.
This article provides instructions for using and setting up the Cumulative People widget.
Step By Step Guide:
Using the Cumulative People Widget
With the Cumulative People widget, you can:

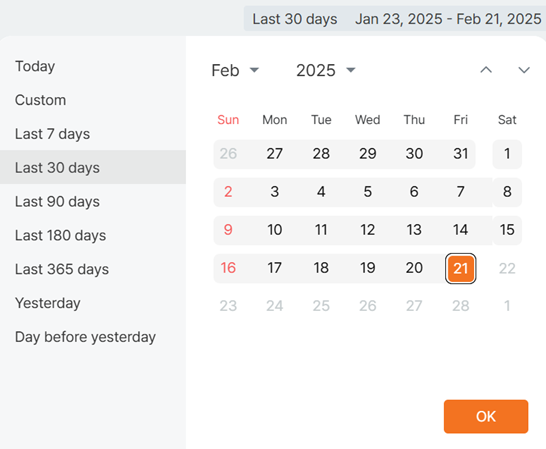

- View the cumulative visitor count for a specified date range.
NOTE: When you change the date, all widgets on the dashboard will update to
display data for the newly selected date.
- Compare the cumulative number of visitors on a specific date with the corresponding comparison date.
For example, if you choose to view data for the last 7 days, you can compare it with the previous 7 days. If the count has increased compared to the comparison date, the number appears in blue; if it has decreased, it appears in red. You can also view the exact numerical values and the percentage of change. -

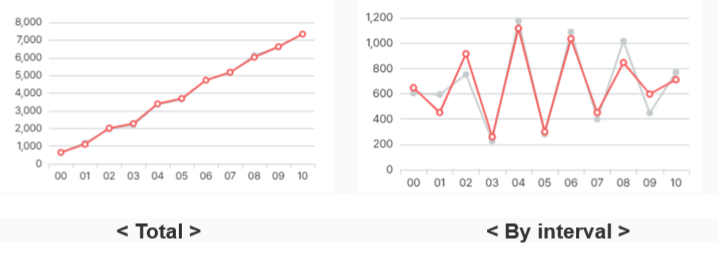

Visualize the cumulative visitor count using either a bar graph or a line graph.
You can also choose the unit (hour, day, or week) for displaying visitor numbers in the graph.
Setting up the Cumulative People Widget
To open the Cumulative People widget setup window:
-

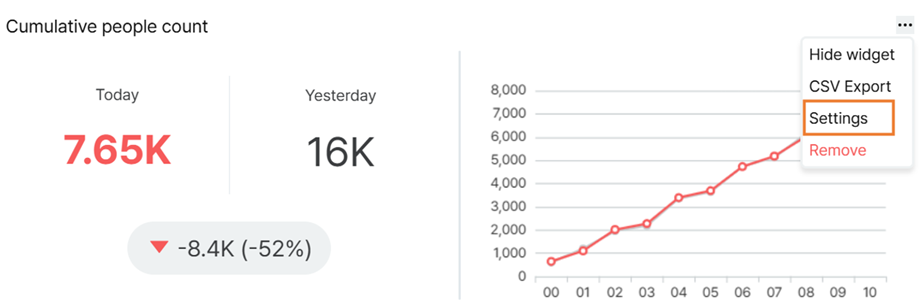

Hover your mouse pointer over the top right corner of the widget and select Setup.
-

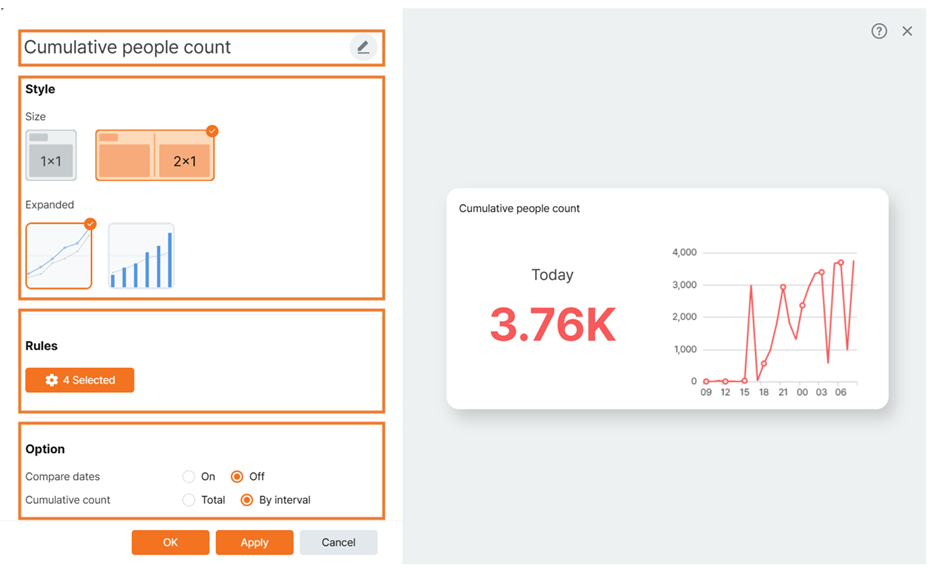

Configure the widget.
-
Widget Name – Click the pencil (
) icon to change the widget name. (You can input up to 50 characters.)
-
Style – Select the widget form style (1x1 or 2x1 columns).
If you opt for the 2x1 column format, you can decide whether to display the cumulative number of people as a line graph or a bar graph in the right column.
-
Rules – Click Select rules. A new window appears listing the People Counting rules set for each camera and channel. (You can also view the video thumbnail that includes the area of interest set by the rule.)
- a. Select the rule to be the basis for analyzing the data.
- b. Click the arrow in the upper left corner to close the rule setting window.
NOTE: If no rules are visible, verify if the rule is configured and
enabled for the camera claimed to SightMind.
- Option – Select the On radio button to display the data along with comparative data.
-
