QNE AI Series: How to activate the LED Light alarm with camera event rules

  • Updated

Applies to Models: QNE-C8013RL, QNE-C9013RL

To maintain standards, Hanwha Vision uses the web UI for all knowledge base articles about product configuration. Open Chrome, enter the IP Address of your device into the URL bar, and press enter. If you are not using the web UI to configure your device, please refer to the user manual for your product.

Summary:

The white light alarm can be activated through a combination of event triggers such as AI based MD, IVA, and tampering detection.  The white light can be turned on during the “Dwell time” and can be used as a welcome, or it can be used as a blinking warning alarm.  In a dark environment monitored by IR, by turning on the white light alarm, people can receive a visual warning that may help to prevent crime.

The steps below walk you through enabling the white light alarm utilizing a camera event.

Step By Step Guide:

  1. Log in to the camera's web interface.

  2. Navigate to Setup > Video & Audio > Camera Setup.

  3. Click the LED light tab to configure the settings of the LED Light.

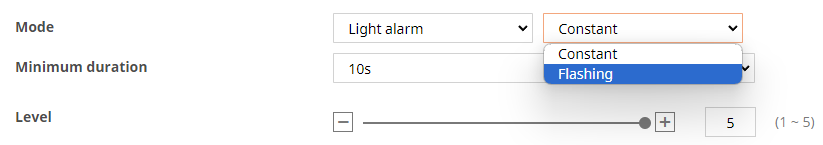

    • Mode: select Light Alarm and then Flashing or Constant
    • Minimum duration: select the amount of time for the light to stay active, up to 30s
    • Level:  select a level of 1 - 5 for the light intensity, 5 being the strongest



Note: You can set an activation time for the light to flash or remain constant so events
trigger during a different time period than when you want the white light LED to activate.

Now that you have enabled the LED light, you need to setup your Motion or IVA events.  To do this, follow these steps.

Motion Detection Configuration:

  1. Navigate to Analytics in the Setup resource tree.

  2. Select Motion detection *AI.

  3. To configure Motion Detection:
    • Check Enable motion detection.
    • Create your Include area(s), Exclude area(s), and Common.
    • Adjust Sensitivity and Minimum duration.



IVA Configuration:

  1. Navigate to Analytics in the Setup resource tree.

  2. Select IVA *AI.

  3. To configure IVA:
    • Check Enable IVA.
    • Configure your Virtual line, Virtual area, Exclude area, and Common settings.
    • Adjust the Minimum duration to suit your needs.

Configure your Event Rule:

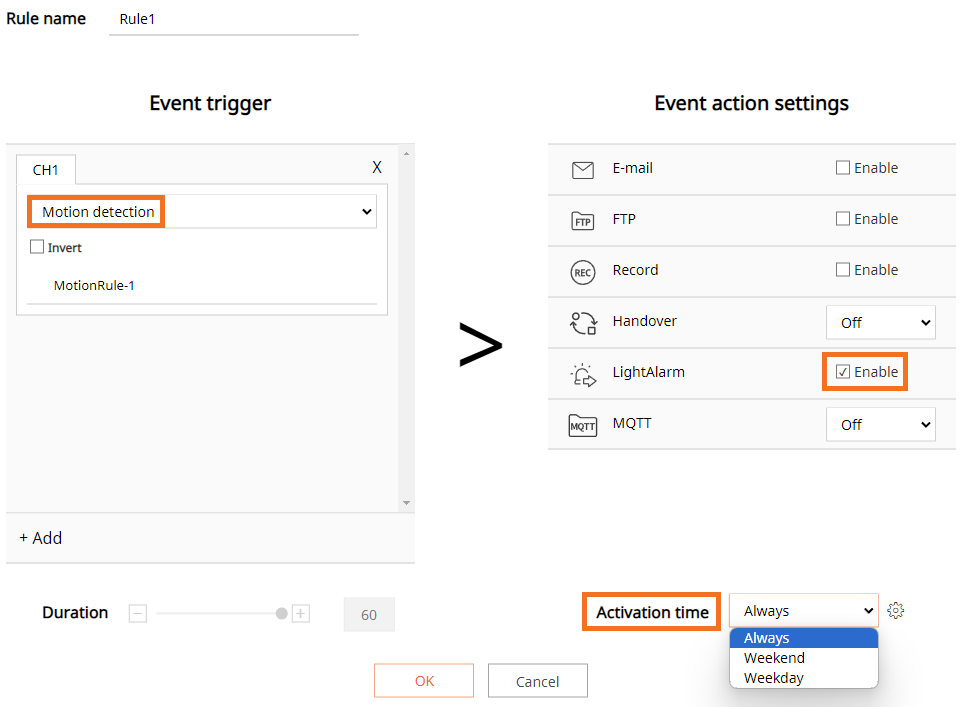

  1. Navigate to Event > Event Rule in the Setup resource tree.

  2. Click Add to add a new rule.
  3. Select the Event trigger for the the analytic you configured (Motion Detection or IVA).

  4. Check the Enable checkbox next to LightAlarm in Event action settings.

  5. Set your Activation time.


  6. Click OK at the bottom of the page to confirm your settings.



Test your configuration and event action to confirm the white light LED turns on or flashes as you specified.
