Applies to Models: WRN Series NVRs

Summary:

The NVR runs on the Ubuntu Linux Operating System and has a different procedure for preparing storage than a Windows PC. This article is meant to help anyone who needs additional storage capacity on their WRN series NVR.

Step By Step Guide:

To add additional storage on a WRN series NVR:

1. Remove the screws for the top case and remove the casing so you can see inside the unit.



   NOTE: Refer to the instructions in the Wave PoE NVR manual.

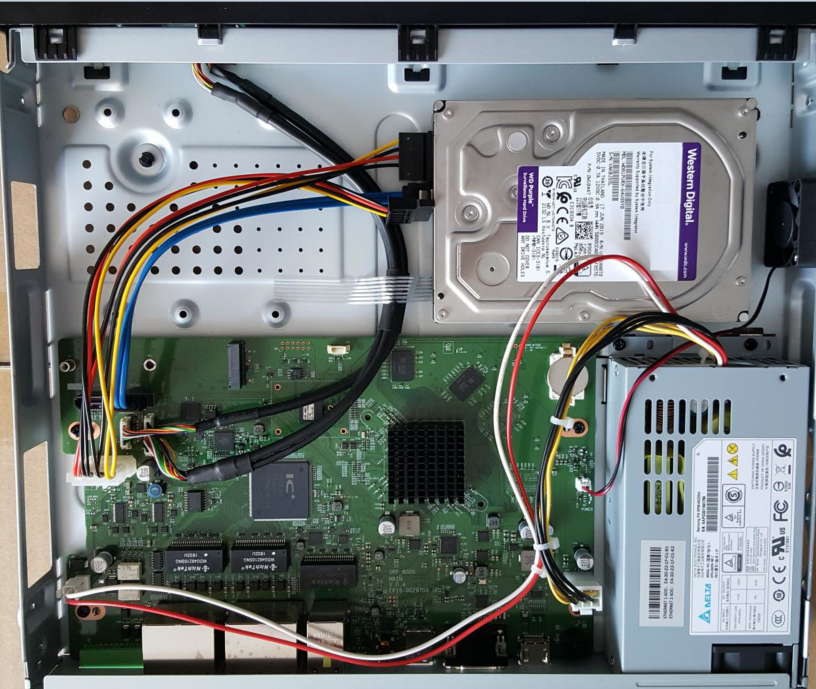

   NOTE: The images in these photos are from a WRN-810s which only has two drive slots.

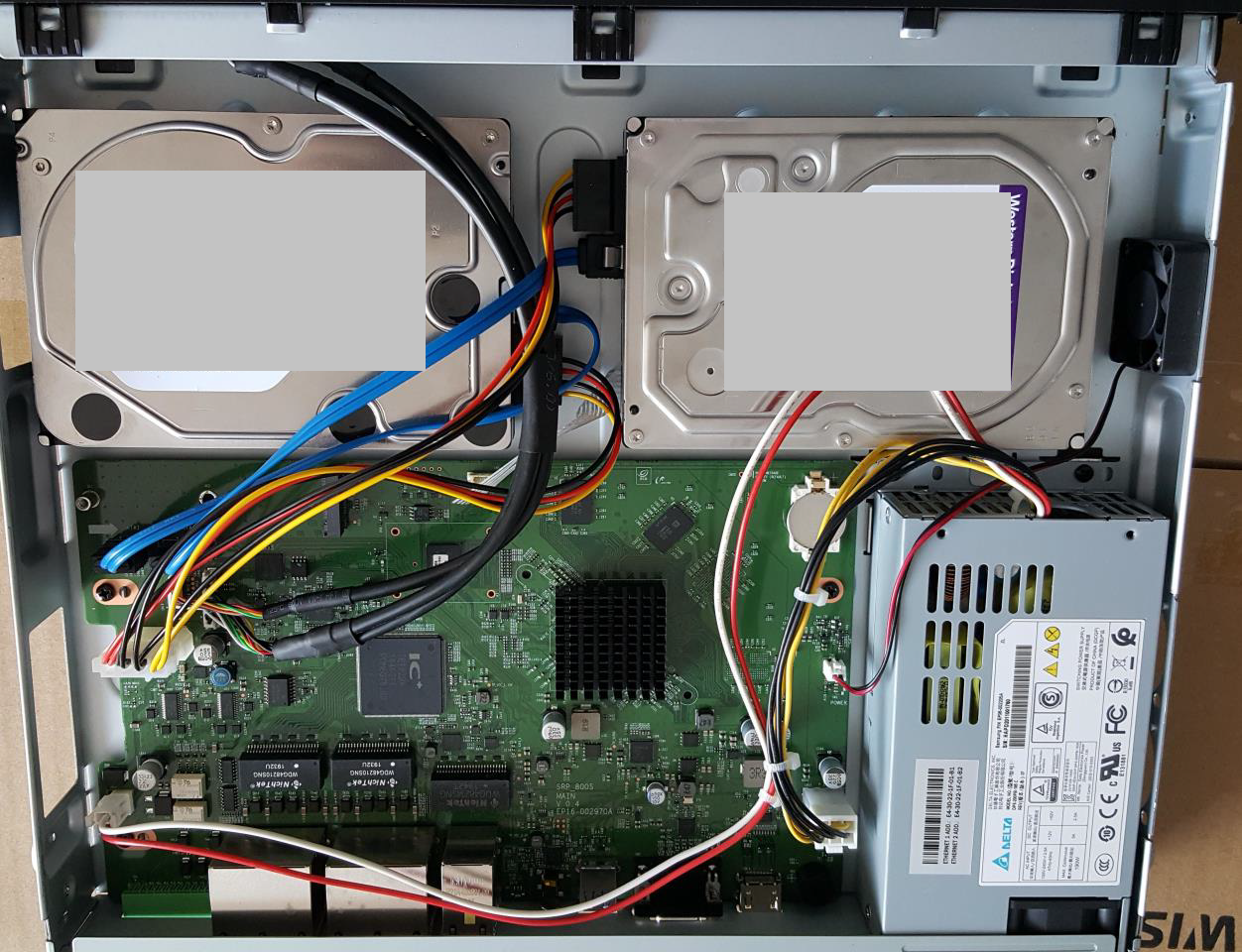

2. Use the included screws from your drive manufacturer to physically mount the drive.

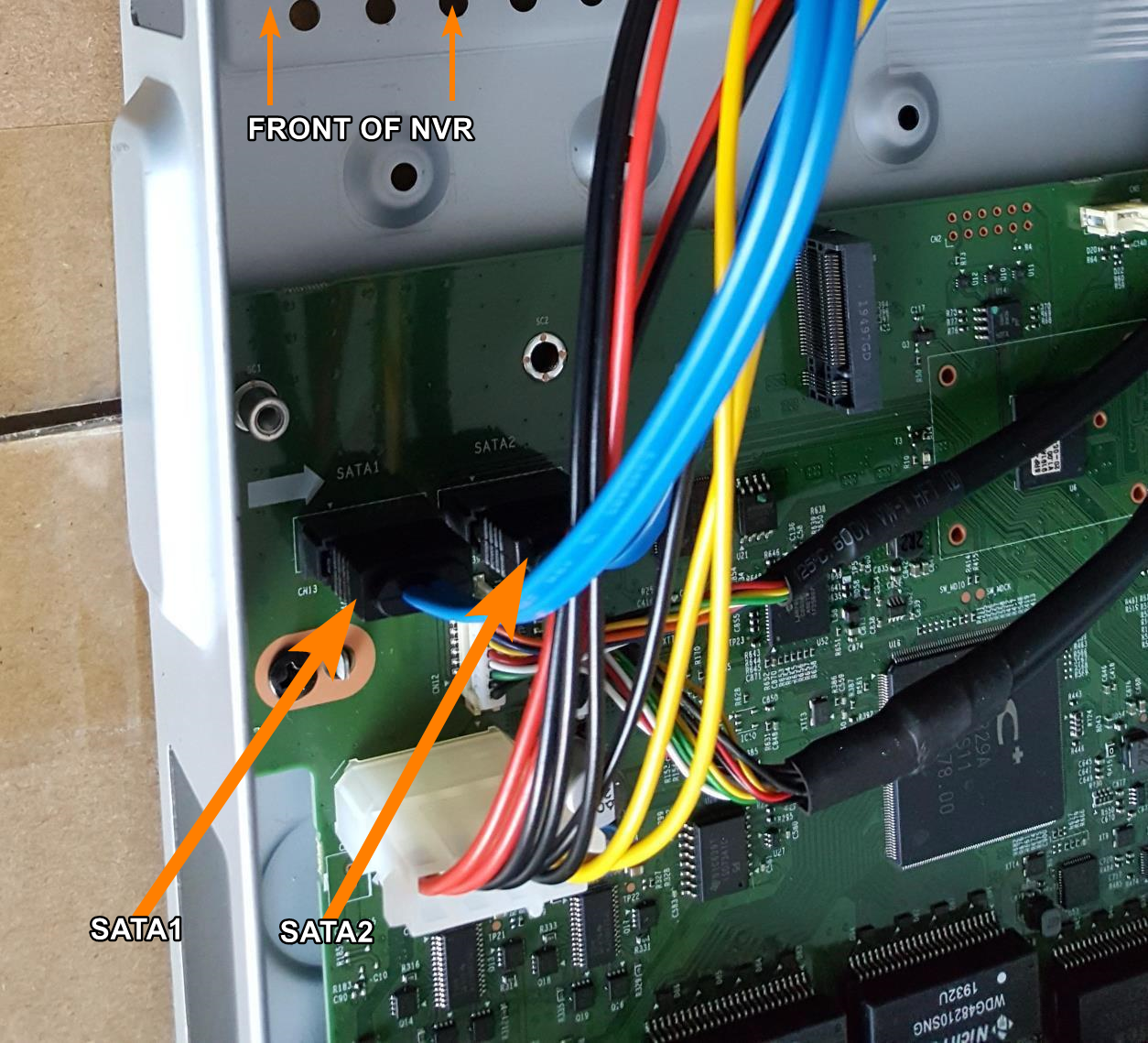

3. Connect the power and data cables to the new drive.


NOTE: For how to properly mount this drive in Linux, refer the the following
article: Why doesn't my hard drive appear in my Linux based WAVE Server?
