Applies to Models: WAVE
Summary:

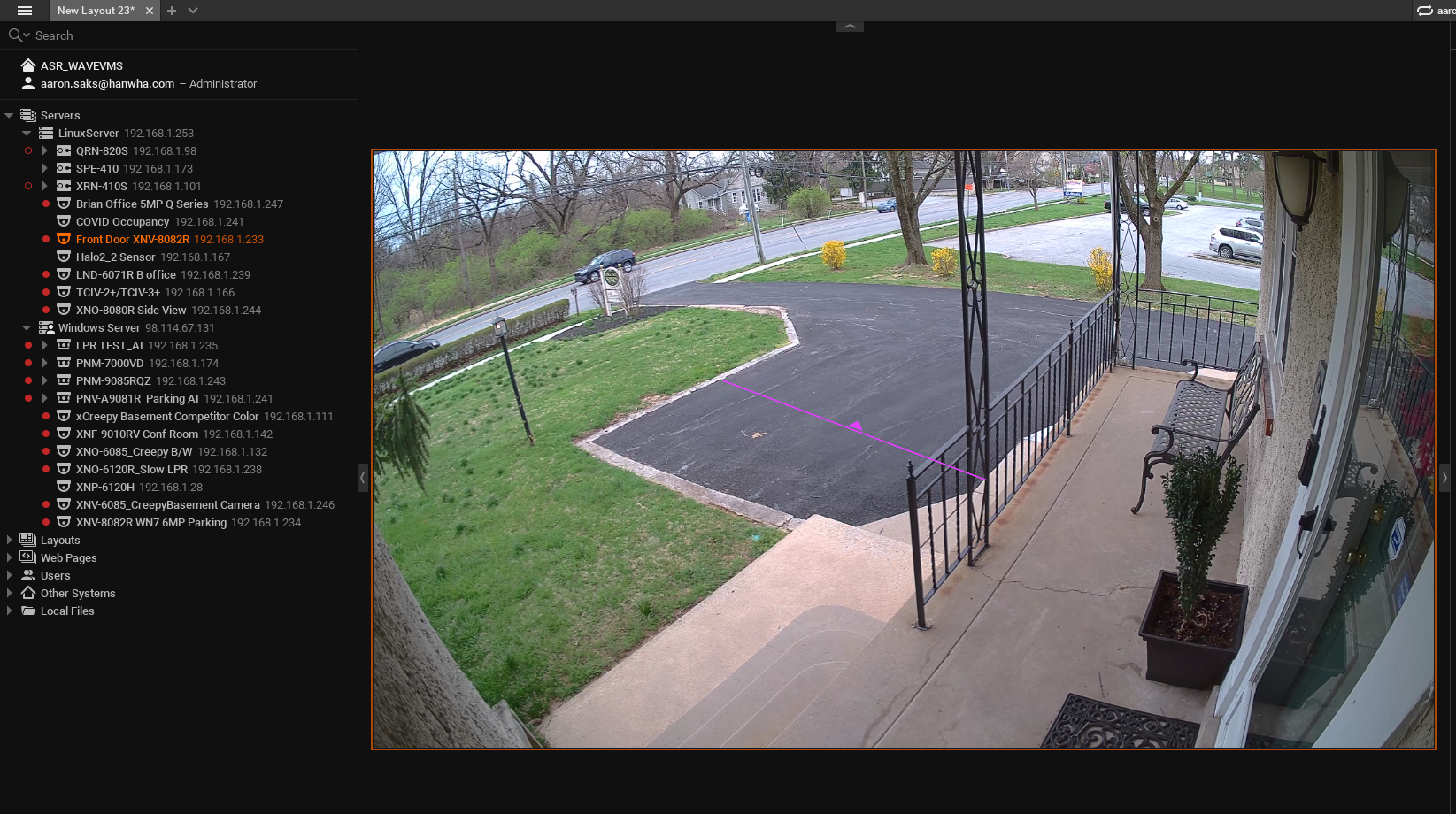

This article will review configuring the IVA zones shown in the live view. Hanwha cameras can send these analytic zones as metadata without burning them into the live/playback video stream. This can be useful in adjusting and configuring analytics or as an aid to an operator monitoring the cameras.
Step By Step Guide:
- Update the system to the latest build of WAVE.
- Right-click on the camera in question.
- Select Camera Settings.

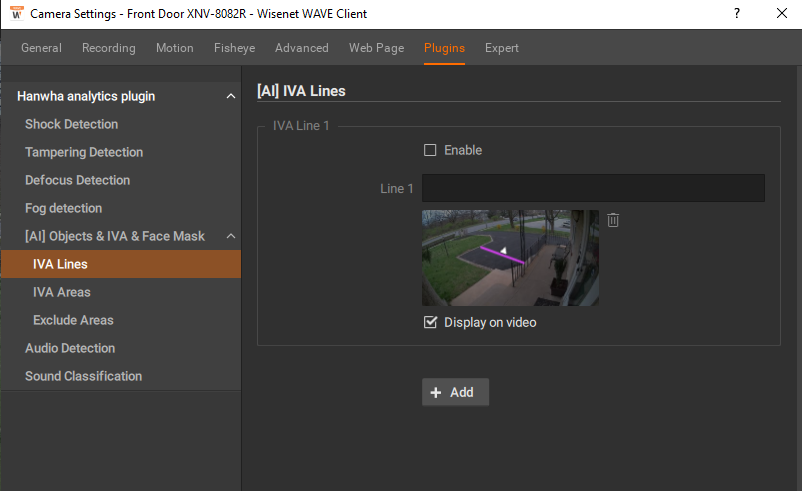

- Select the Plugins tab.
- Select the desired analytic.
-
Enable the Display on video option.
- Repeat these steps for any other analytics desired.
-
Click Apply or OK.
