Applies to Models: PNM-8082VT, PNM-12082R, PNM-7082RVD

Issue Summary

Certain functions on cameras that ship with a single system on a chip (SoC) for multiple sensors running Wisenet 7 are linked. Most notably, the Hallway view mode setting applies to all channels due to hardware limitations.

The PNM-8082VT, PNM-12082R, and PNM-7082RVD cameras have one Wisenet 7 SoC to run their multiple sensor channels. When Hallway view mode is enabled, the camera reboots and all channels use the same rotation.

Resolution

Configure the mirror/flip setting individually for each channel.

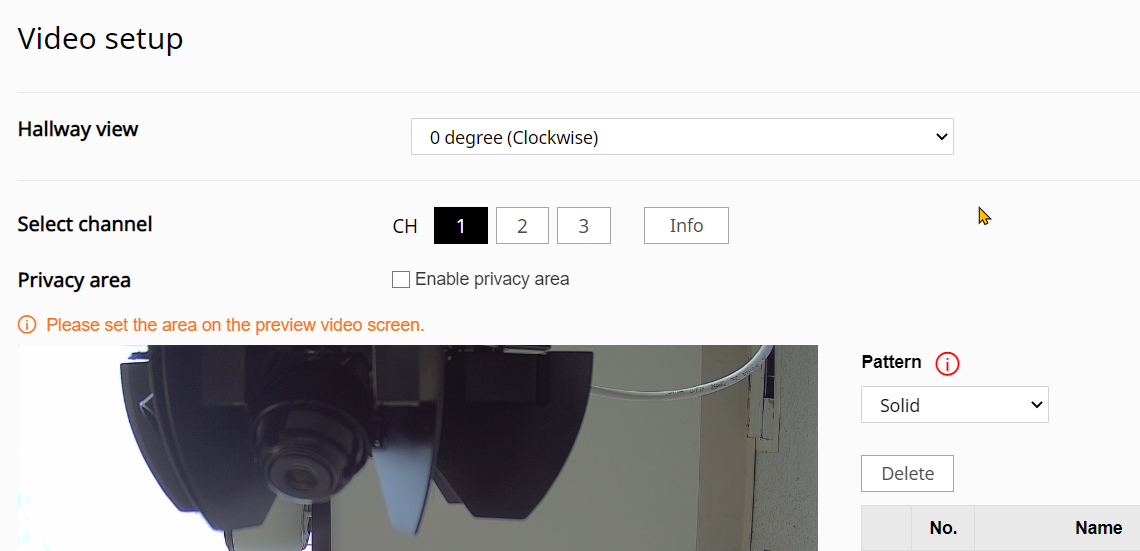

NOTE: In cameras with this limitation, the Hallway view appears
above the channel listing, indicating this function is shared
across all sensors.
