Summary:
This article outlines how to configure an event, such as motion detection or a digital I/O trigger, to transfer image snapshots or a series of snapshots from a camera to an FTP server. This setup can be performed either locally on a LAN or transferred to a remote FTP across the WAN.
Step By Step Guide:
To setup a network camera for an FTP event:
- Open a Chrome browser and enter the IP of the camera into the URL bar.
- Log in using valid admin credentials.
- Click the Gear icon at the top of the interface.
- Navigate to Event > FTP/E-mail.

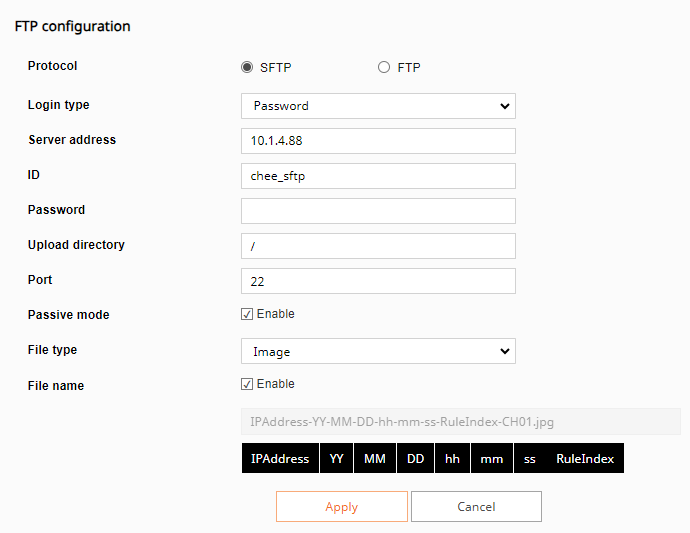

- Enter the parameters for the FTP server (either local address or remote WAN address) then click Apply.

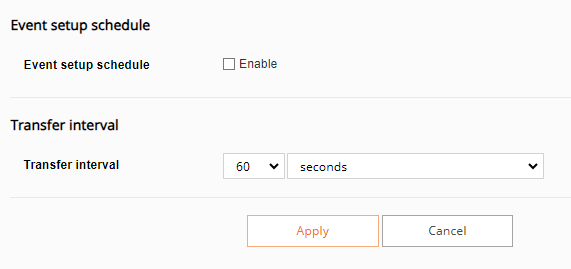

- Click Time schedule from the menu on the left.
- Check the Enable checkbox and select the Interval time to transfer images to the FTP server, then click Apply.
